Buying a bare frame can make or break a road bike build. Your first decision is brake standard: do you want rim brakes and quick-release wheels, or disc brakes and a thru-axle fork? The next is size, and this group covers 52cm to 56cm. The four carbon options range from a used Giant TCR at USD 179.00 to a BXT disc-brake frameset at USD 546.77, with two Felt rim-brake frames between them. Here is how to choose.
Quick take
All four are carbon road frames, but they diverge sharply on brakes. The Giant TCR C1, Felt F Series, and Felt Z1 are rim-brake frames; the BXT 700C frameset is the only disc-brake option. The two Felt frames use a BB30 bottom bracket shell, while the Giant uses a threaded bottom bracket and includes its aero fork. Prices step from USD 179.00 to USD 199.95 to USD 299.95 to USD 546.77, so your budget and fit will narrow the field faster than any single spec.
Price comparison
| Frame | Listed Price | Price Bar | Key Detail |
|---|---|---|---|
| Giant TCR C1 Composite Road Frame (M, 54cm) | USD 179.00 | Rim brake, threaded BB, aero fork included | |
| Felt Z1 Road Bike Frame (54cm, NOS) | USD 199.95 | Rim brake, BB30, endurance geometry | |
| Felt F Series Road Frame (56cm) | USD 299.95 | Rim brake, BB30, 27.2mm seatpost | |
| 700C Carbon Disc Brake Road Bike Frame (52cm) | USD 546.77 | Disc brake, thru-axle fork, 950g class |
Decision matrix
- Lowest listed price with fork included: Giant TCR C1 at USD 179.00.
- Race-oriented 56cm rim-brake frame: Felt F Series at USD 299.95.
- New old stock endurance 54cm frame: Felt Z1 at USD 199.95.
- Disc-brake thru-axle frameset: 700C Carbon Disc Brake Road Bike Frame at USD 546.77.
Frame-by-frame notes
Giant TCR C1 Composite Road Frame (Medium, 54cm, Rim Brake)
The Giant TCR C1 is the least expensive way into this group at USD 179.00. It uses Giant's compact-geometry carbon layup and includes the matching aero composite fork, which removes a major part from your shopping list. Traditional 100mm front and 130mm rear quick-release spacing plus a threaded bottom bracket make it approachable for a classic or lightweight road build. The custom headbadge gives it a distinctive look you will not see on typical TCR builds. The catch is condition: this one is used, so inspect the carbon carefully before committing. It is also a rim-brake frame, so you will need caliper brakes and wheels built around that standard.

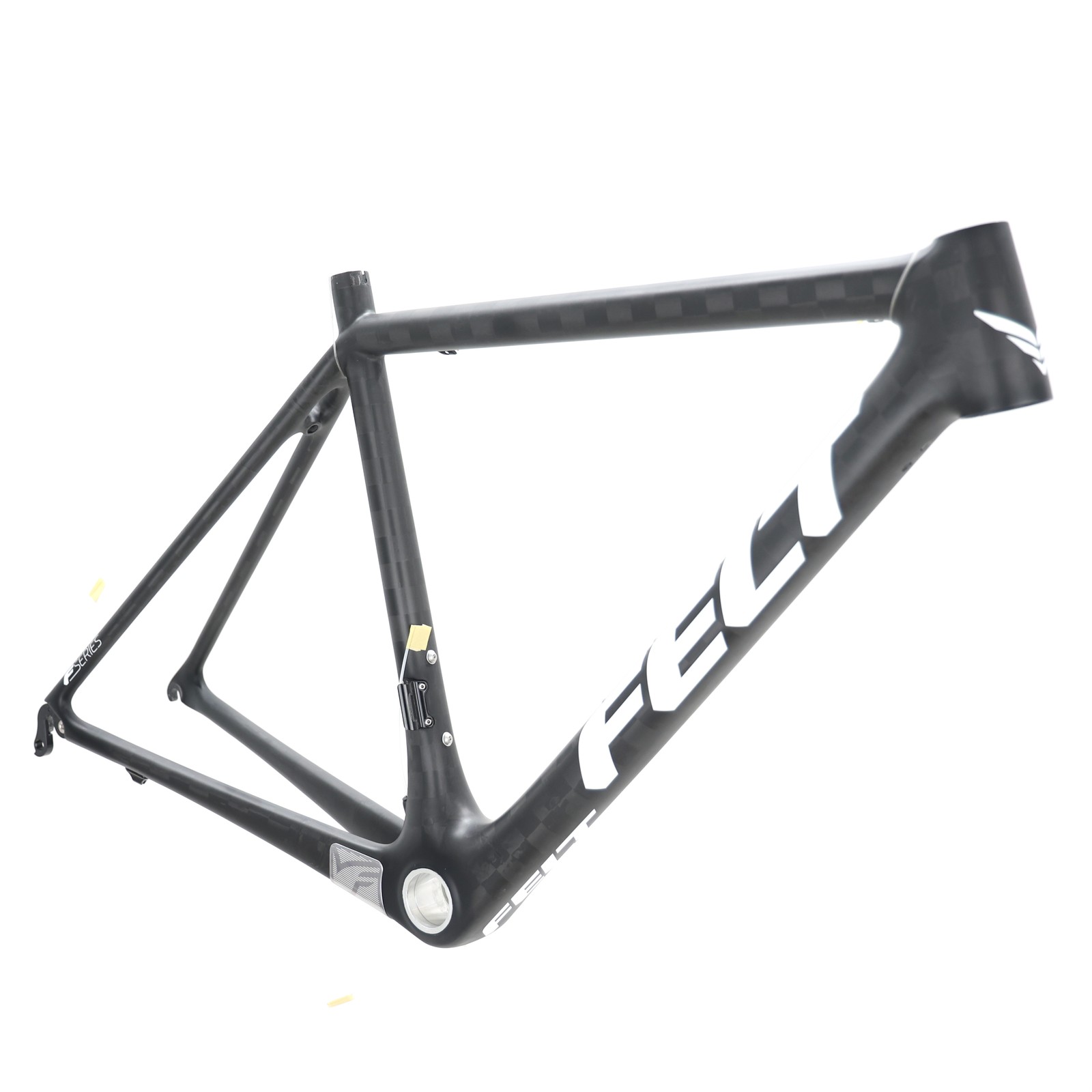

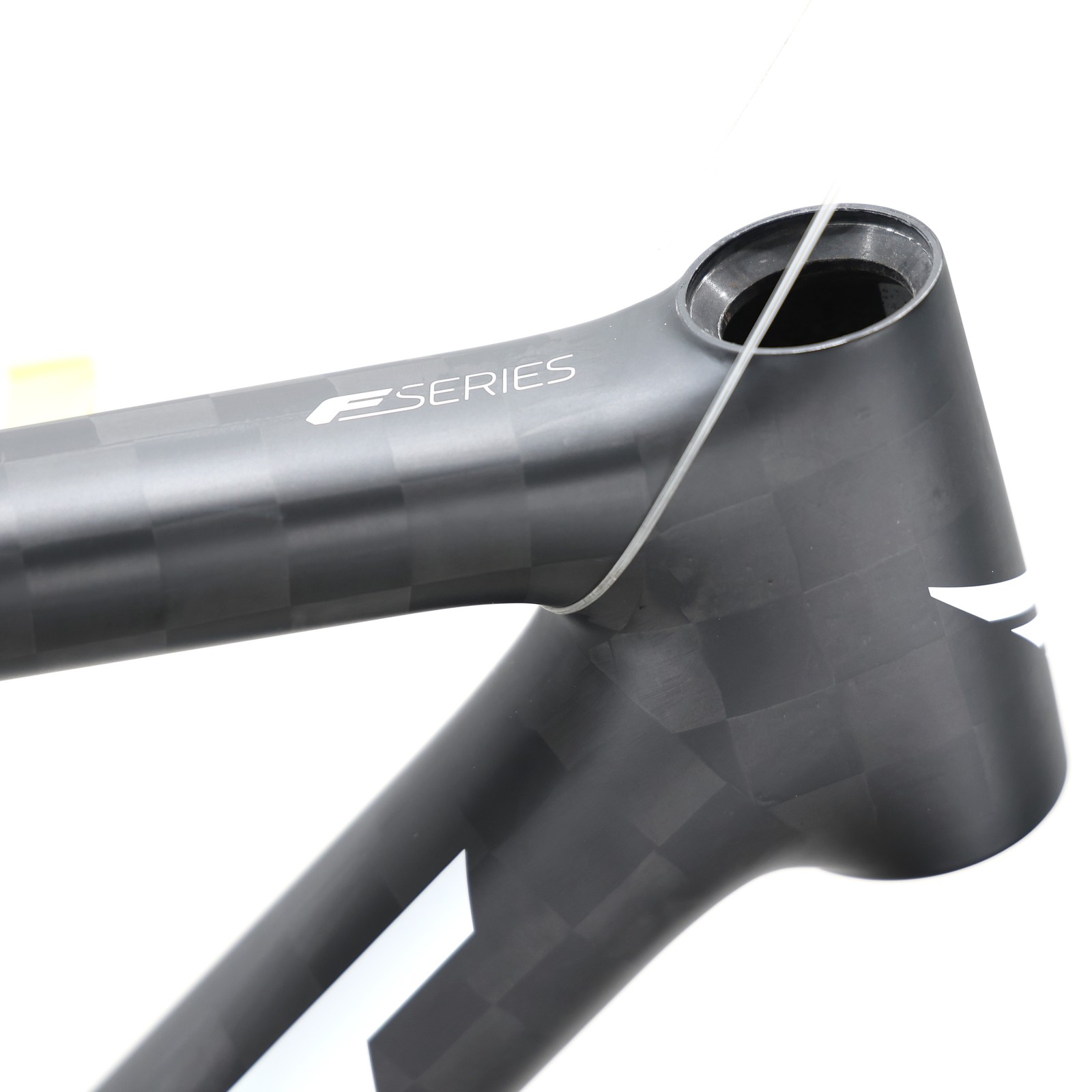

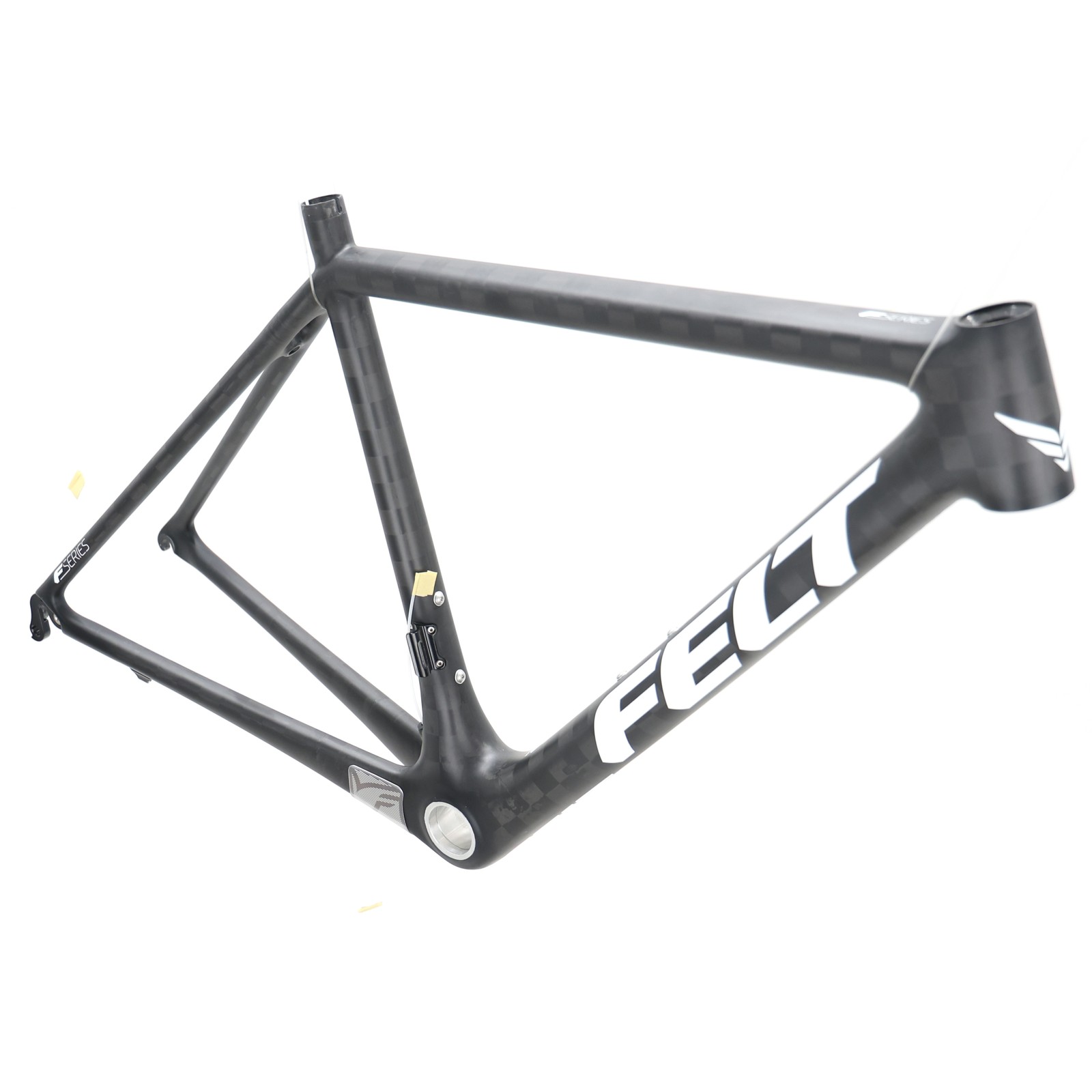

Felt F Series Road Frame (56cm)

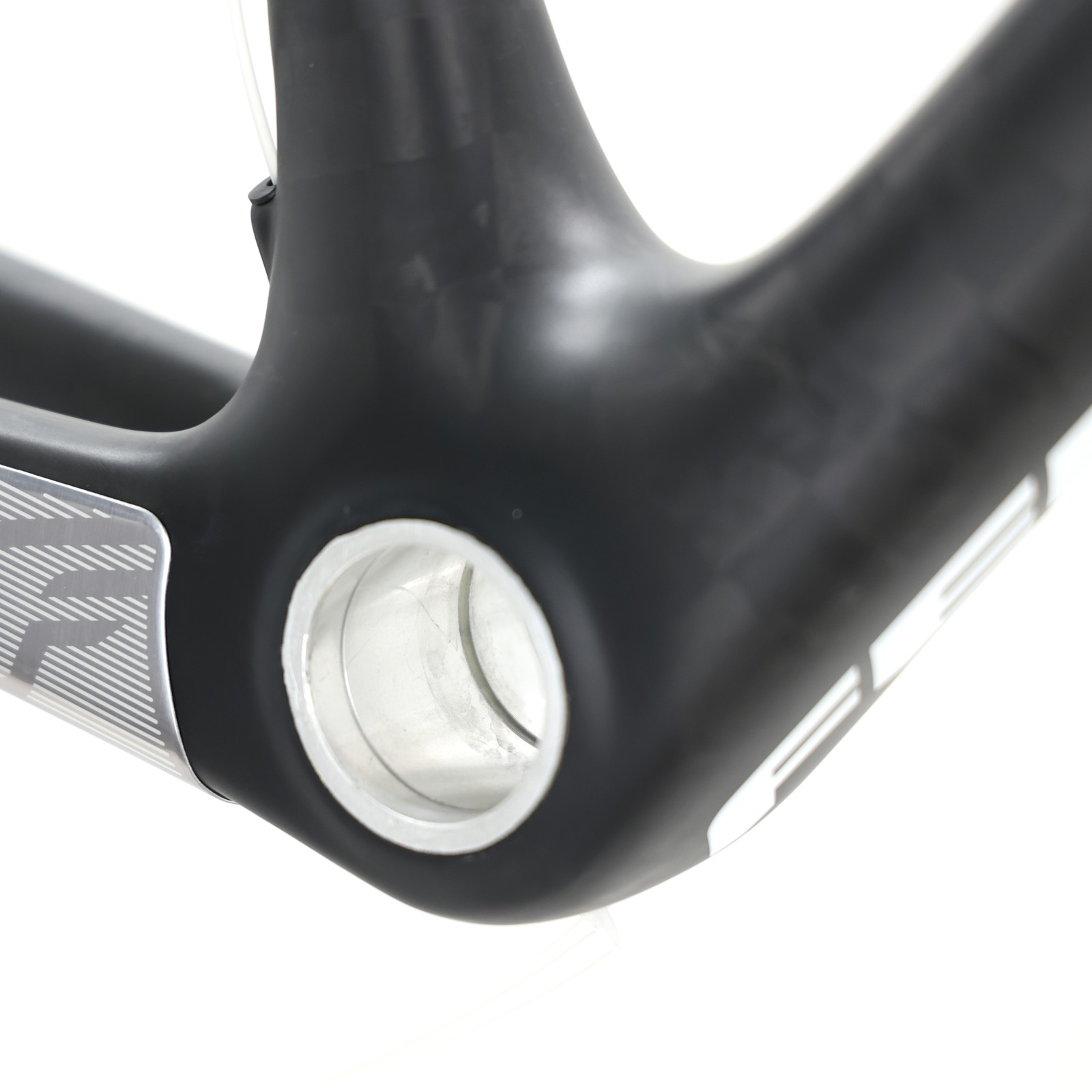

Priced at USD 299.95, the Felt F Series is sold as new and targets a race-oriented platform. It uses UHC Ultimate TeXtreme carbon and Felt's InsideOut molding process, plus a BB30 bottom bracket shell and a 27.2mm seatpost. The routing works with external mechanical or internal electronic drivetrains, giving you flexibility if you are planning a modern groupset. Since it is a bare frame only, you are starting from scratch with headset, seatpost clamp, wheels, and groupset. The 56cm sizing and rim-brake calipers narrow the build direction, so this is a specific choice for riders with a larger frame fit.
Felt Z1 Road Bike Frame (54cm)
The Felt Z1 at USD 199.95 is described as new old stock, and it uses the Z-series endurance-oriented road geometry. That means the 54cm frame should feel more relaxed for long rides than a pure race shape. The BB30 shell and rim-brake setup keep the build classic, and the matte black and gloss red finish gives it a distinct two-tone look. The limitation is that because this is NOS inventory, the exact model year and original factory spec are not confirmed. It also comes as a bare frame, so budget for the rest of the components separately.
700C Carbon Disc Brake Road Bike Frame (52cm)
At USD 546.77, the 700C Carbon Disc Brake Road Bike Frame is the highest-priced option and the only one with disc brakes. The BXT frameset uses t700 and t800 carbon, a Sky Blue gloss finish, and a 12x100mm fork axle spec, which points toward a modern thru-axle disc-brake road build. The 950g superlight name lines up with the stated 950g ± 50g frame weight, though that figure is tied to a 56cm frame and the available size here is 52cm. You are paying the most in this comparison, but you are also getting the only path to disc-brake wheels and hydraulic groupsets among these frames.
Final recommendation by use case
- For a budget-conscious rim-brake build with the fork included: Giant TCR C1.
- For a race-oriented 56cm frame with modern routing flexibility: Felt F Series.
- For a new old stock 54cm endurance frame at a moderate price: Felt Z1.
- For a disc-brake, thru-axle road frameset with a superlight target: BXT 700C.
No single frame wins across every build. Decide first on brake standard and frame size, then let the listed price and intended ride style point you to the right carbon foundation.
