Choosing a frame and fork is the biggest decision in any bike build. These four options cover very different territory: two vintage Trek steel frames, a lugged Windsor Carrera, and a new BXT carbon frameset. The listed prices span from an affordable used frame to a modern carbon disc-brake model, with a spread of about 60% between the lowest and highest prices. The right choice comes down to one question: are you restoring a classic, reusing a parts bin, or building a new road bike from a lightweight frame?
Quick Take
The Windsor Carrera is the lowest-priced frame here and a direct pick for a classic road/racing restoration. The BXT carbon frameset is the only new frame in the group and the one to choose for a modern lightweight road build. The 54cm Trek frame fits someone who wants the mixte-style design with True Temper steel. The Trek 520 is a parts-frame project for someone with a drawer full of components.
Listed Prices
| Frame and Fork Option | Listed Price | Relative Price | Best Use |
|---|---|---|---|
| Vintage Trek Step Through Frame 54cm | USD 399.99 | Step-through road build | |
| Vintage Trek 520 Frameset | USD 350.00 | Touring/gravel parts project | |
| Vintage Windsor Carrera 59cm | USD 219.99 | Classic road/racing restoration | |
| 700C Carbon Disc Brake Road Bike Frame | USD 546.77 | Modern 700c road build |
Decision Matrix
- Restoration-friendly vintage road: Windsor Carrera - 59cm lugged steel, fork included, 27in wheels.
- Modern lightweight road: BXT carbon - 52cm, new condition, carbon frameset.
- Step-through vintage rider: Trek Step Through - 54cm True Temper 4130 chromoly, matching fork.
- Parts-donor or touring project: Trek 520 - 25in steel frameset with rims and bar-end shifters.
Product Notes

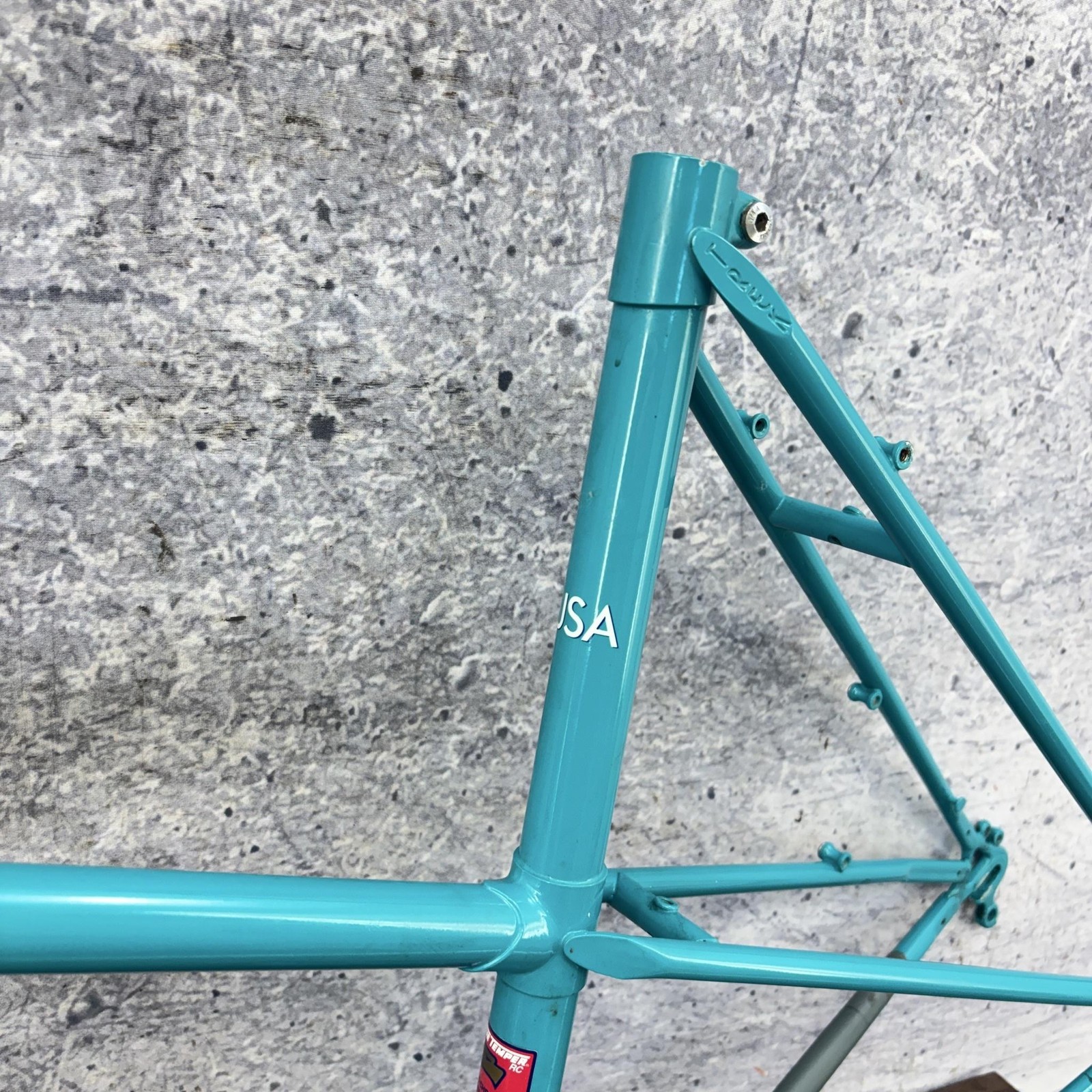

Vintage Trek Step Through Frame 54cm

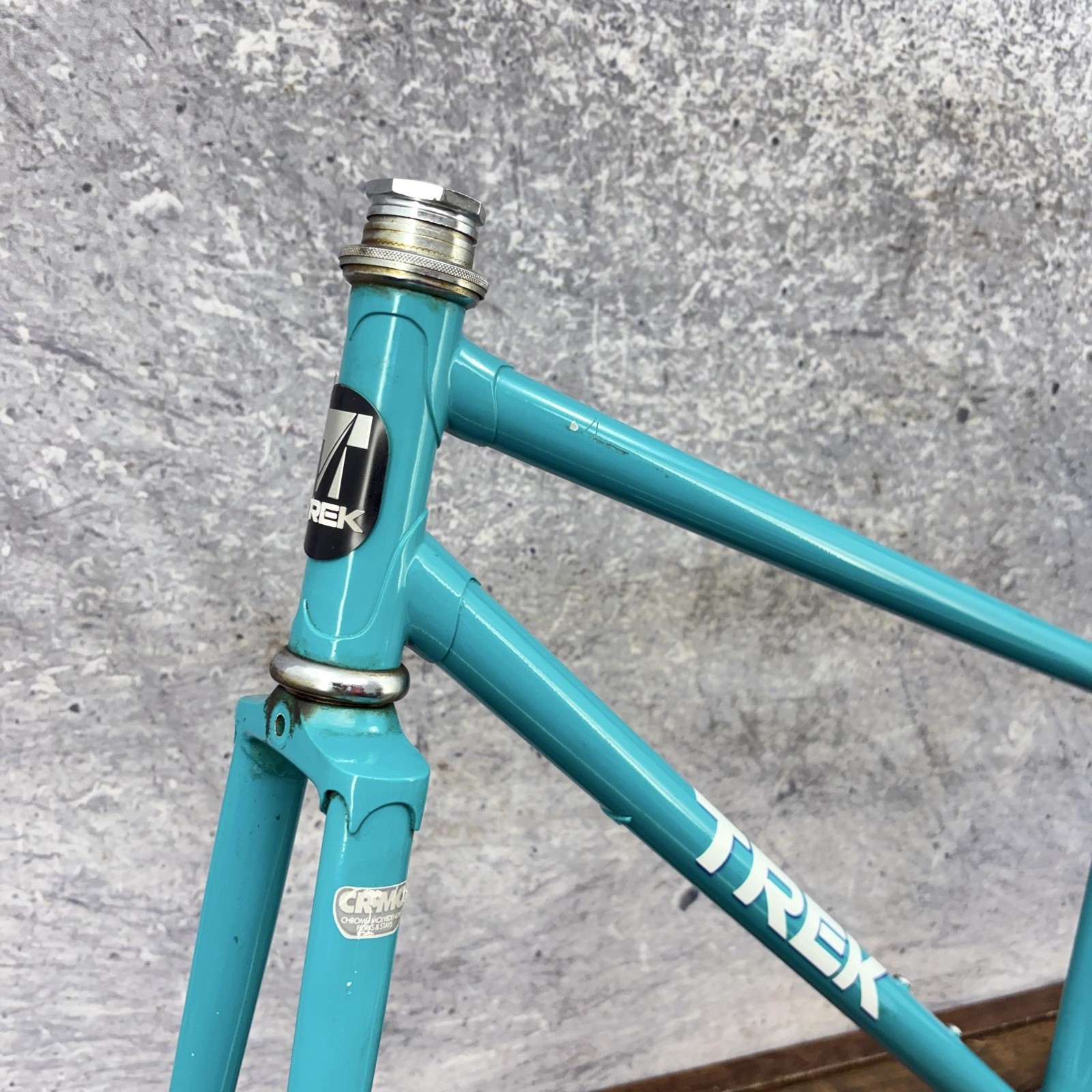

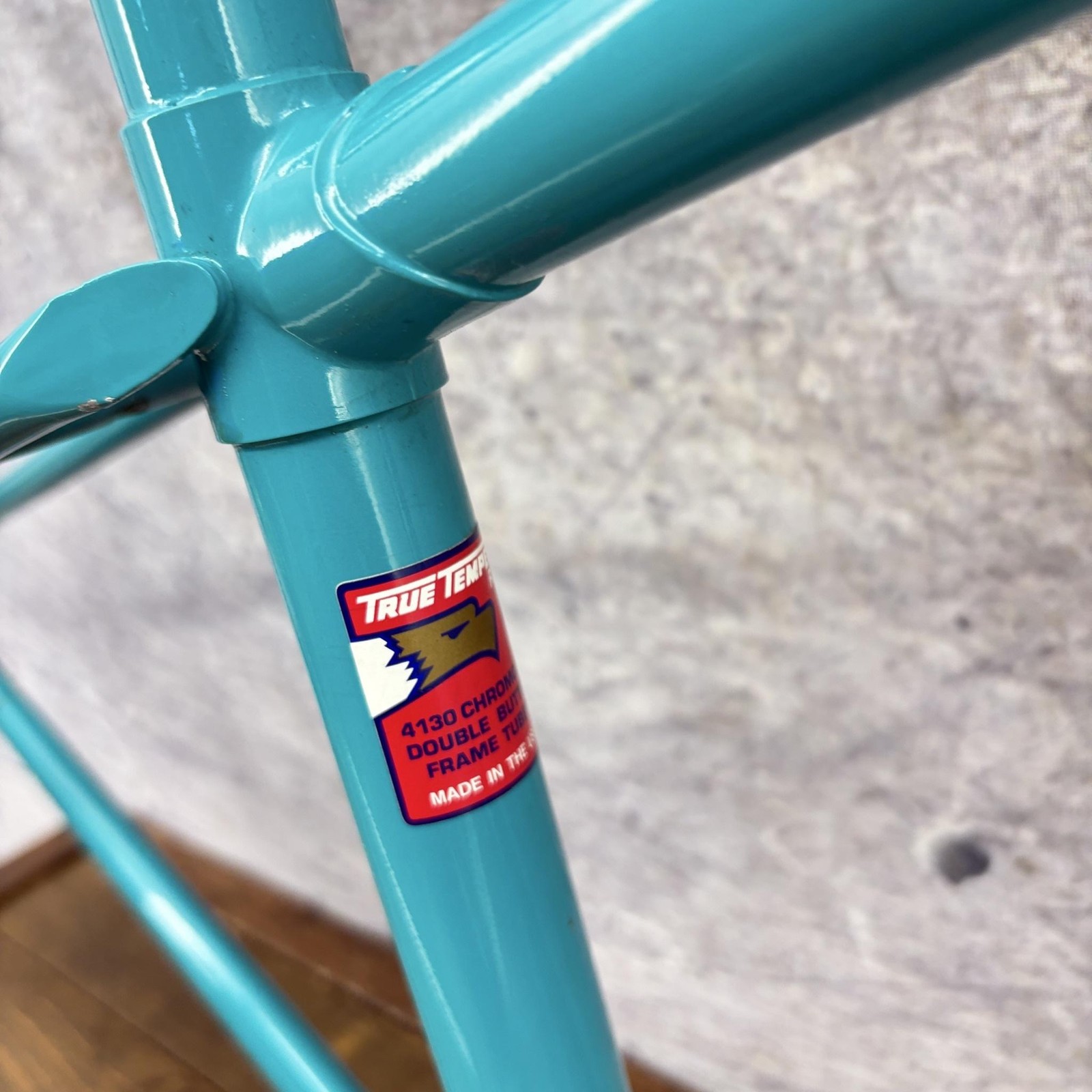

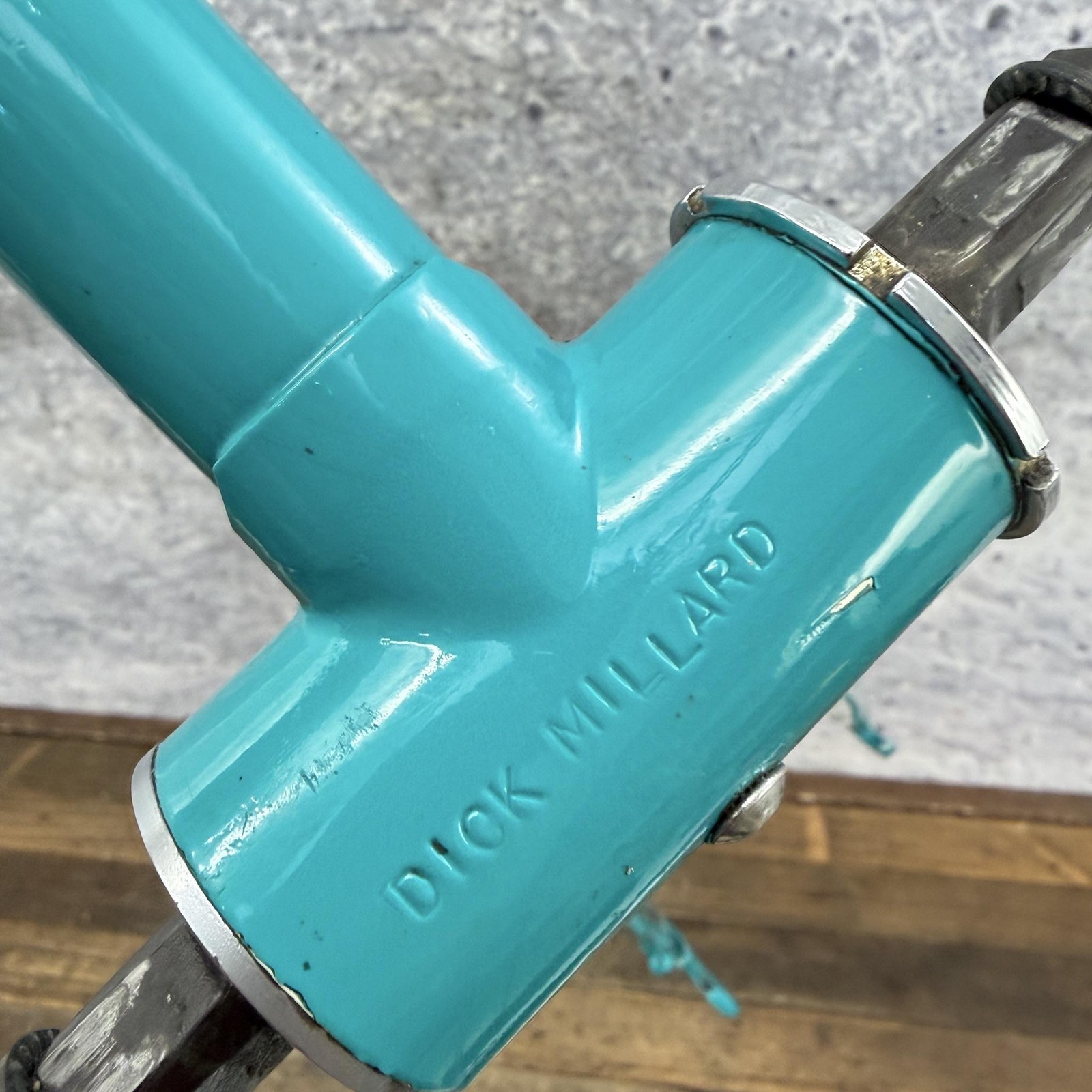

This step-through Trek is for you if you want the mixte-style design with True Temper steel. The frame uses True Temper 4130 chromoly double-butted tubing and comes with a matching chromoly fork, custom stampings, and braze-ons. The listing gives a 54cm seat tube, a 51-52cm top tube, and 27in wheel fit; 700c wheels may fit with longer-reach brakes. Its listed weight is 8 lb 13 oz. The headset and bottom bracket are included but have not been serviced, so they may need attention. There are no dents or cracks, but the paint has scratches and marks from prior use, and the frame has no serial number. Choose it for a step-through vintage rider where you are ready to service the included small parts.

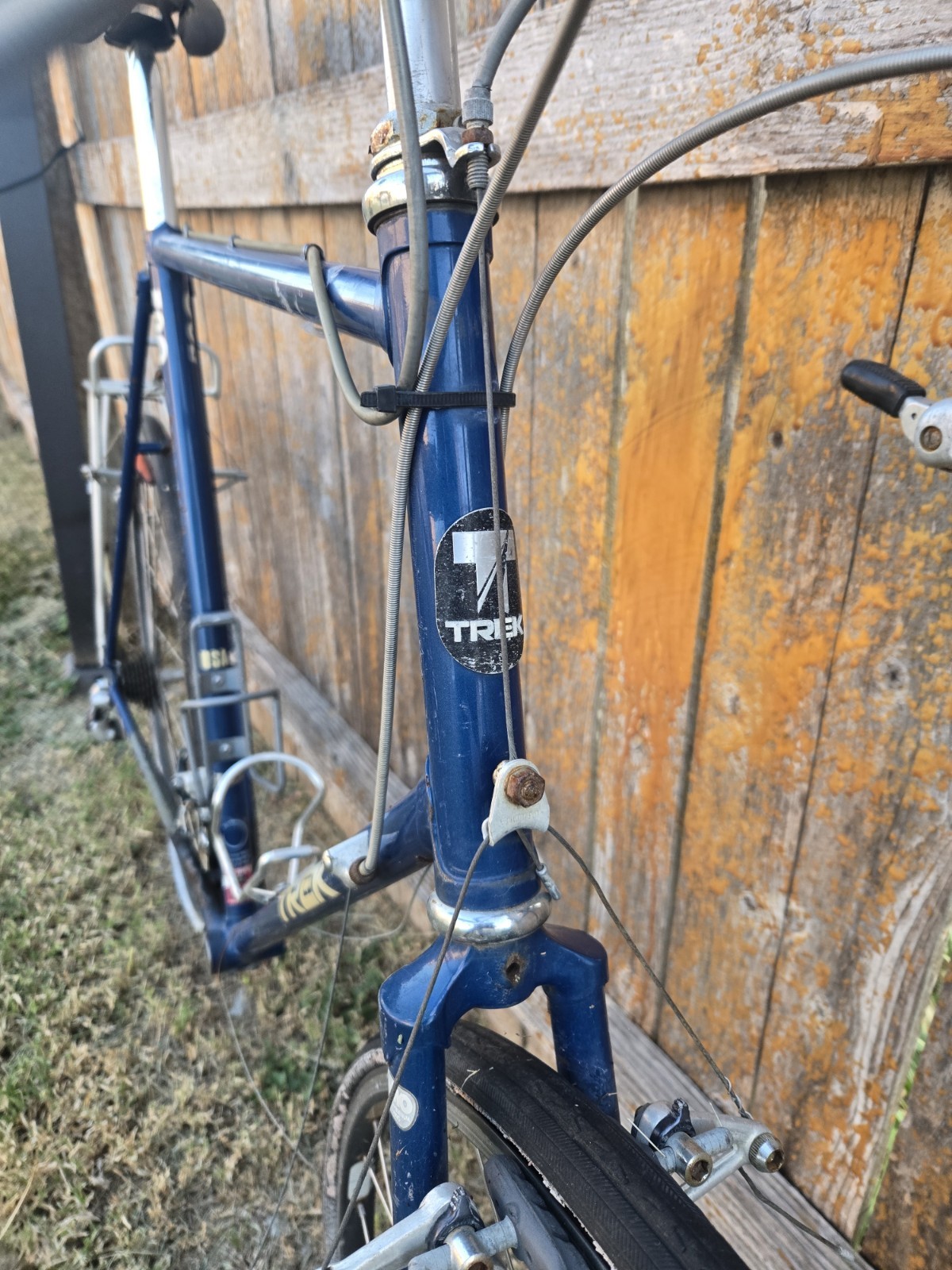

Vintage Trek 520 Frameset

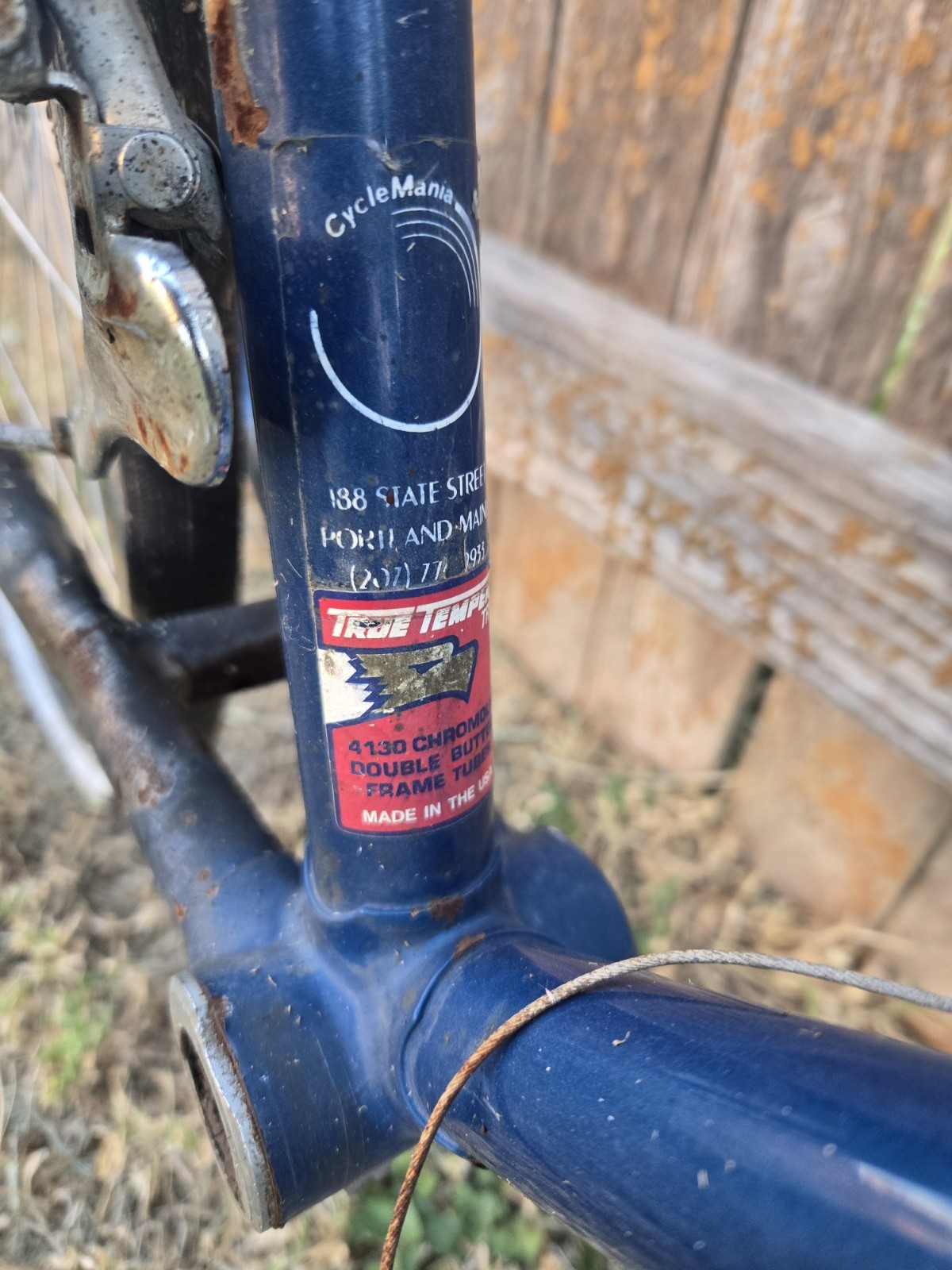

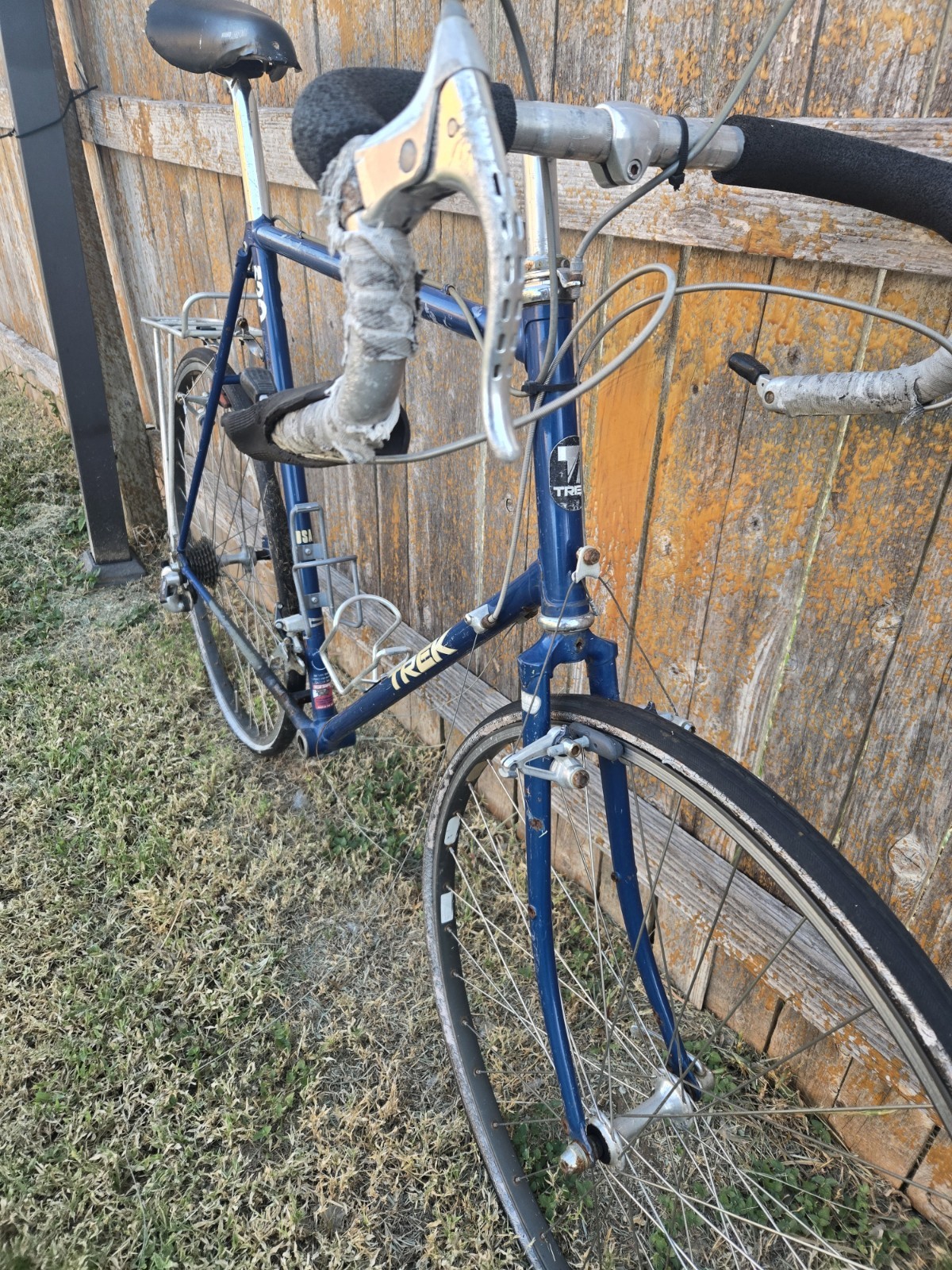

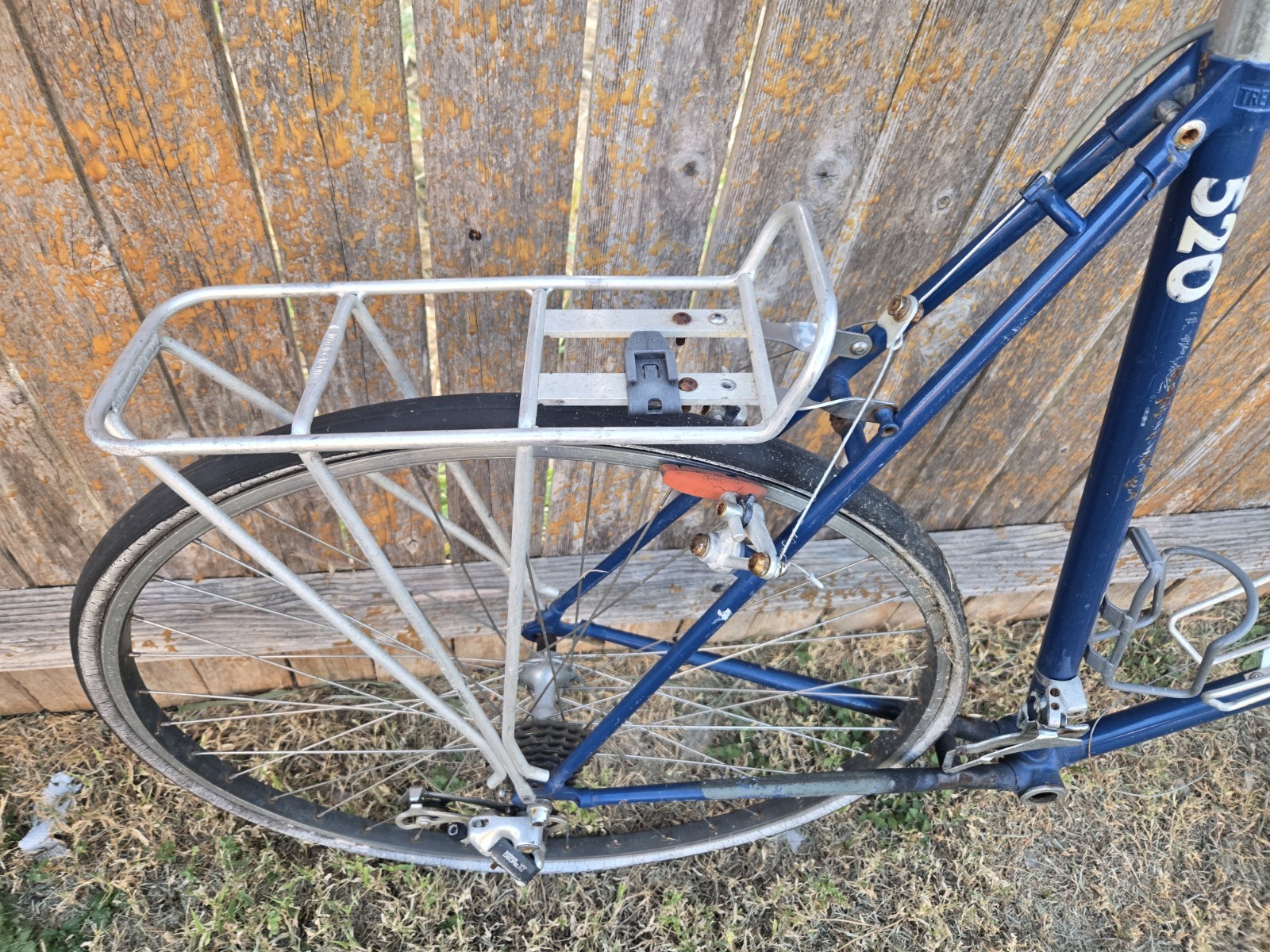

The Trek 520 is listed as a parts bike: no crank, no chain, and missing pieces. This is not a ride-ready frame. What you get is a 25in steel frameset with cantilever brake mounts, bar-end shifters, and the rims; the tires and tubes will need replacing. The frame is described as compatible with a broad range of builds, including touring, city, cyclocross, gravel, and road. If you already have a drivetrain and wheels, this is a cost-effective way to assemble a steel touring or all-around bike from your own parts. The limitation is the work ahead: you will need to supply the missing drivetrain parts and replace the tires and tubes before it can roll again.

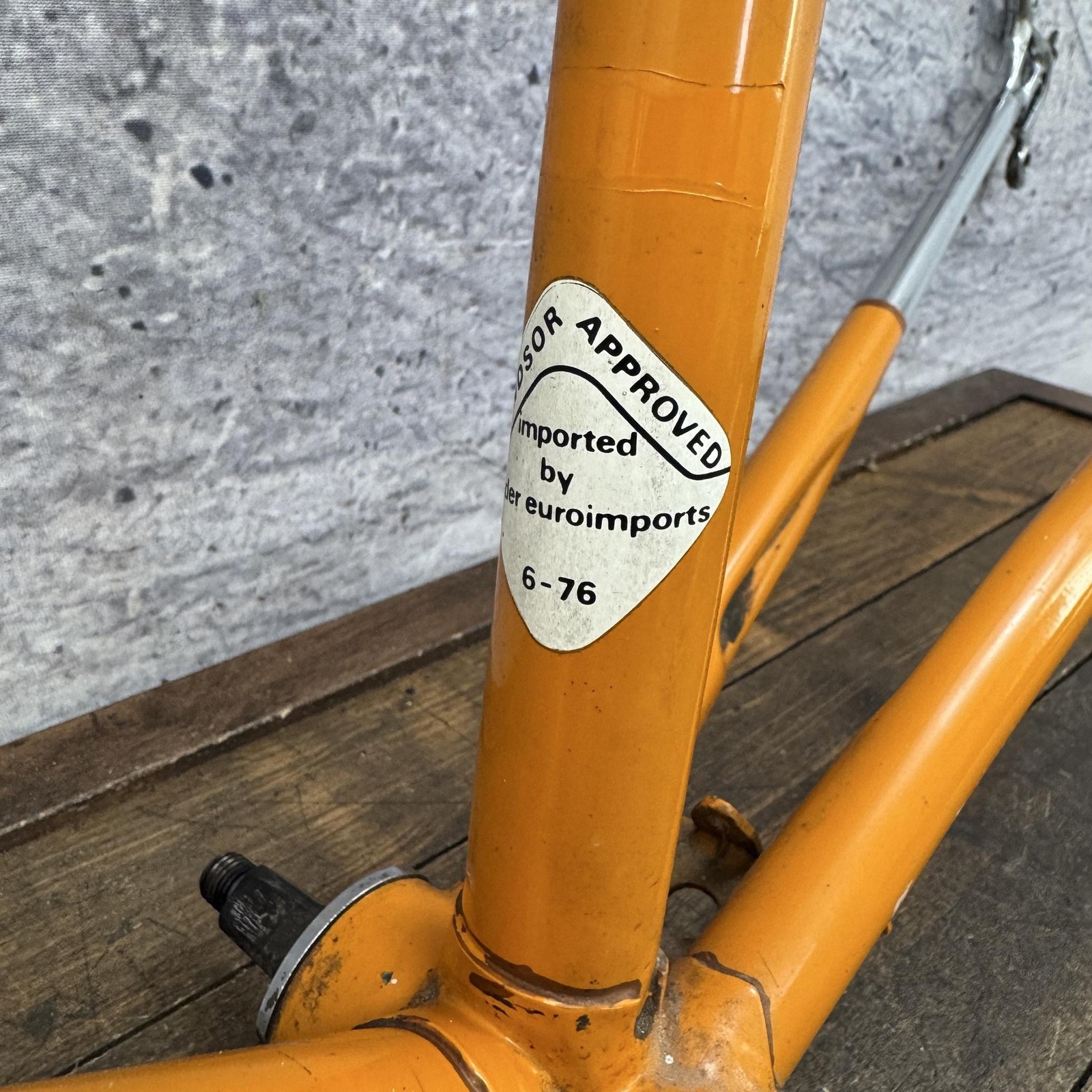

Vintage Windsor Carrera 59cm

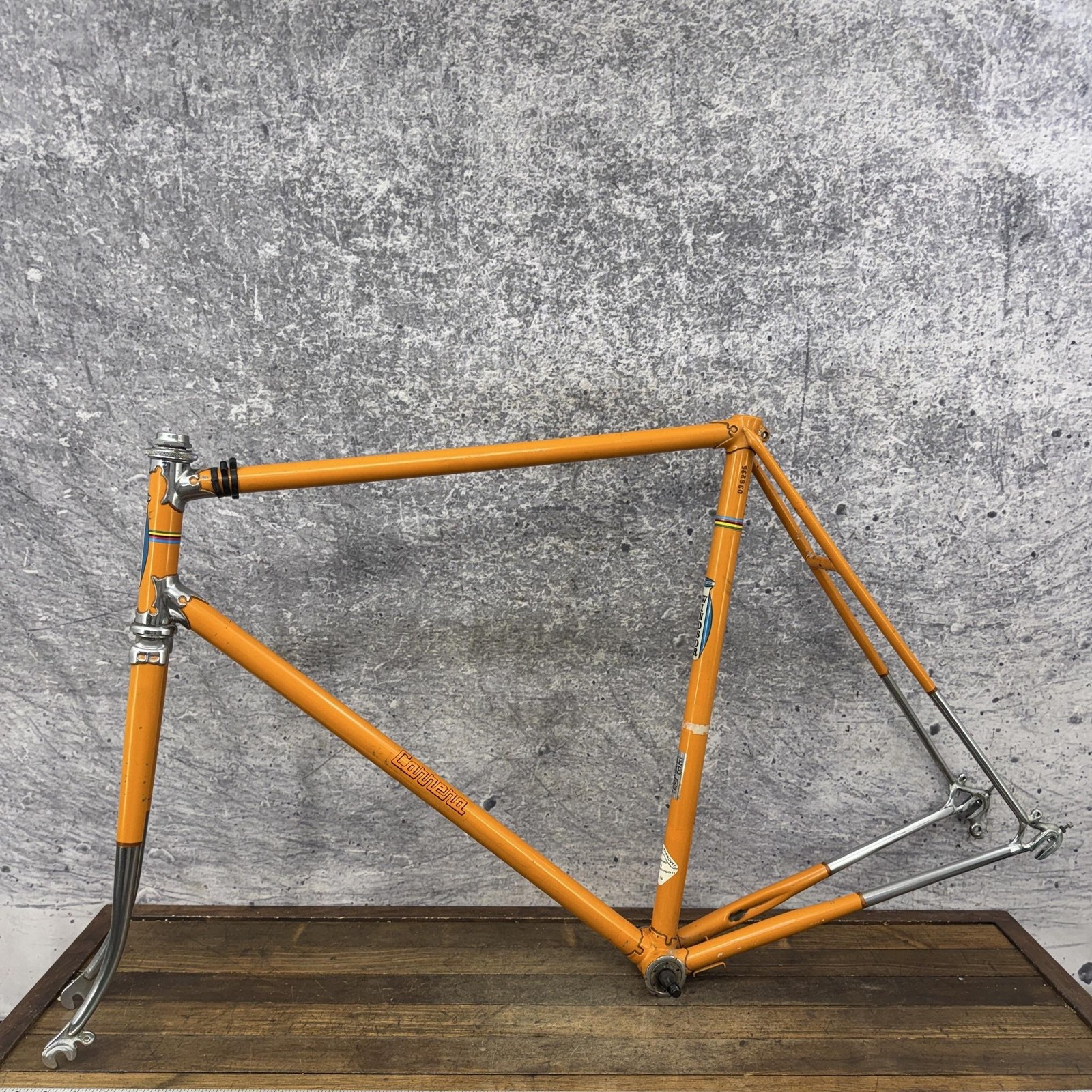

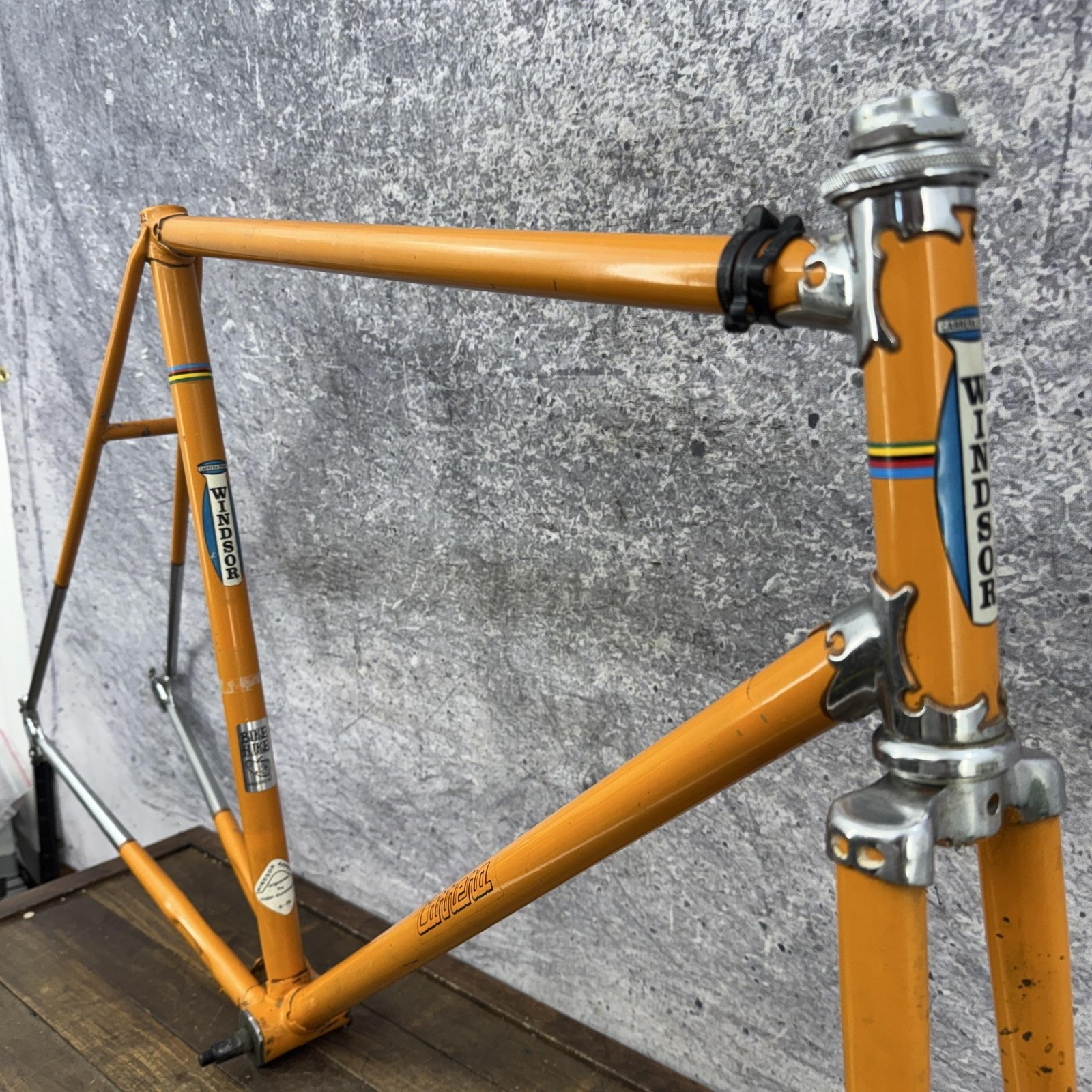

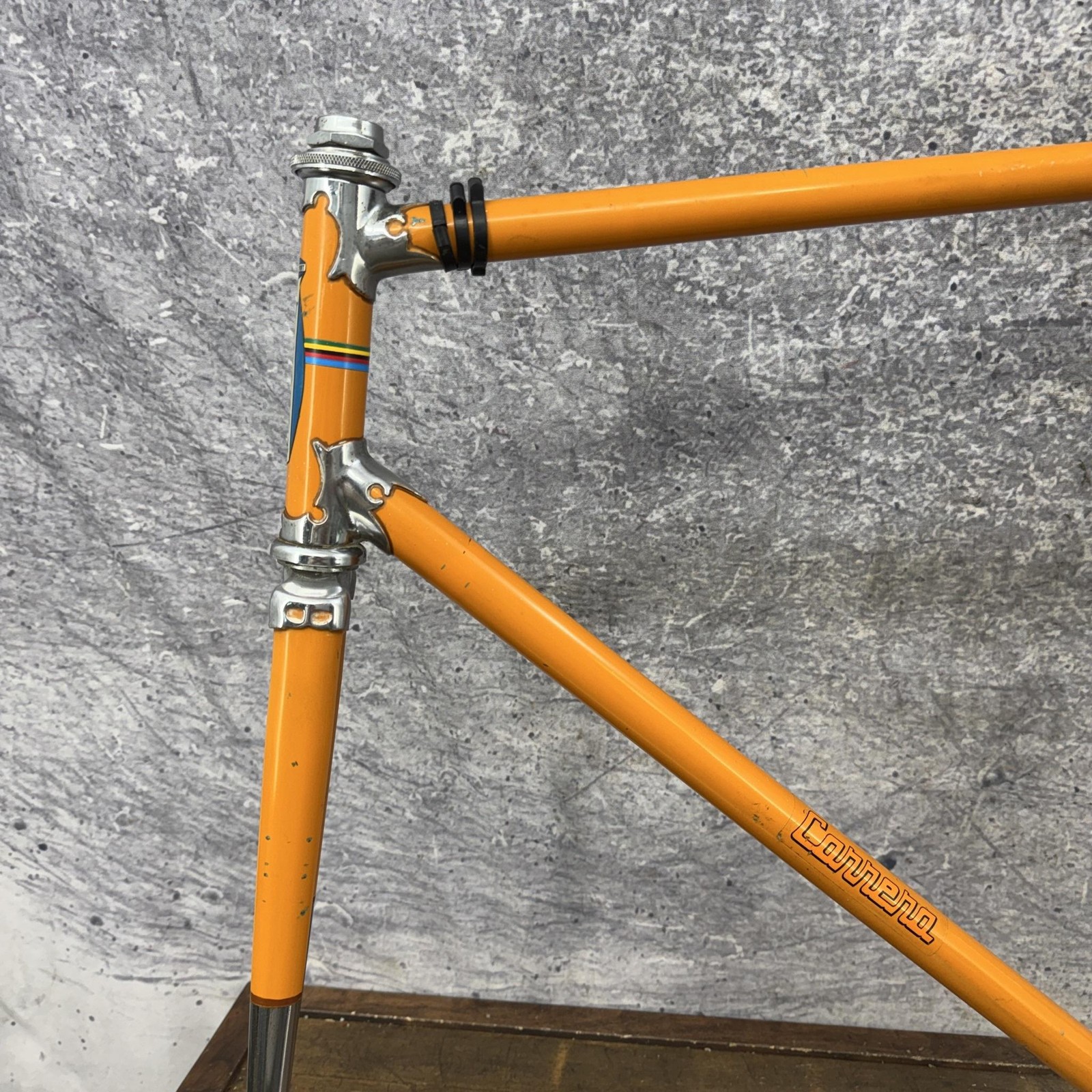

The Windsor Carrera sits at the low end of this price spread, making it the direct answer for a budget-minded classic road build. It is a 59cm lugged steel frameset with a 58cm top tube and a matching fork with a chrome crown and 1-inch threaded steerer. The SunTour GT rear dropouts have axle adjuster screws, and there are rack and fender eyelets plus braze-on cable guides. It is set up for 27in x 120mm wheels with side-pull brakes, and the description says 700c may fit with long-reach brakes. Its limitation is size: at 59cm, this is a large frame for taller riders, and the intended wheel size is 27in rather than 700c. If you need a complete vintage frameset in a big size, this is the one to start with.
700C Carbon Disc Brake Road Bike Frame
The BXT carbon frameset is the only new frame in this group and the only one with disc-brake mounts. This listing is for the 52cm version of the BXT-SL-115, made from T700 and T800 carbon fiber. It is a 700c road frame, and the fork uses a 12x100mm thru-axle. The advertised 950g frame weight is tied to the 56cm frame, so use that figure as a size-specific point of reference rather than an exact weight for this 52cm frame. If you want a new, lightweight road frameset and are comfortable buying direct from a factory seller, this is the pick. The trade-off is that the 950g figure is tied to the 56cm frame, not the 52cm, so the exact weight for this size is a separate matter.
Final Recommendation
For a classic road restoration on a budget, the Vintage Windsor Carrera at $219.99 is the direct pick. For a modern 700c road build, the BXT carbon frameset at $546.77 is the only new frame. For a step-through vintage rider, the Trek Step Through at $399.99 gives you True Temper steel and a matching fork. For a parts-bin touring/gravel project, the Trek 520 at $350.00 provides a steel frameset with rims and bar-end shifters.
