Picking a replacement or upgrade from the world of e-bike motors, controllers, and displays is a "short the wrong wire" moment: if the voltage range, motor wattage, or display protocol doesn't match your bike, you may end up with a motor that jerks, a display that flashes error codes, or a controller that refuses to spin at all. These four options cover the spread of common build scenarios, from high-power motorcycles and cargo bikes to 500W commuters. They range in price from $65.54 to $177.99, but the more expensive unit isn't automatically the right fit. Here's how to choose among them.
Quick Take
- Upgraded ND72300: Pick this for high-amperage builds needing 72V-class power and programmability.
- Brushless Motor Controller X056-AXD001: Pick this for mountain-bike conversions where you can work around a picky display protocol.
- Ebike 36V 48V 52V 2000W 40A Sine Wave 3-mode Controller: Pick this for high-power 36V to 52V systems that already have a matching display.
- 24V/36V/48V E-bike 26A Controller with Display WP Plug: Pick this when you want the controller, display, and cabling in one purchase.
Price Comparison
| Product | Listed Price | Bar |
|---|---|---|
| Upgraded ND72300 | $177.99 | |
| Brushless Motor Controller X056-AXD001 | $72.29 | |
| Ebike 36V 48V 52V 2000W 40A Sine Wave 3-mode Controller | $65.54 | |
| 24V/36V/48V E-bike 26A Controller with Display WP Plug | $106.63 |
Decision Matrix
- If your build is a high-power cargo or e-mini/e-mountain project, the ND72300's voltage flexibility and 300A output make it the one to start with.
- If you're converting a mountain bike and want a controller that spans a wide motor power range, the X056-AXD001 is the category fit, with the protocol caveat explained in its note.
- If you're running a multi-voltage system with a 2000W motor, the 40A three-mode controller covers that range once you match the display protocol.
- If you're outfitting a 24V/36V/48V commuter at 500W or 750W, the bundle with the M6 display and 1T5 cable gives you the complete brain in one purchase.
Product Notes

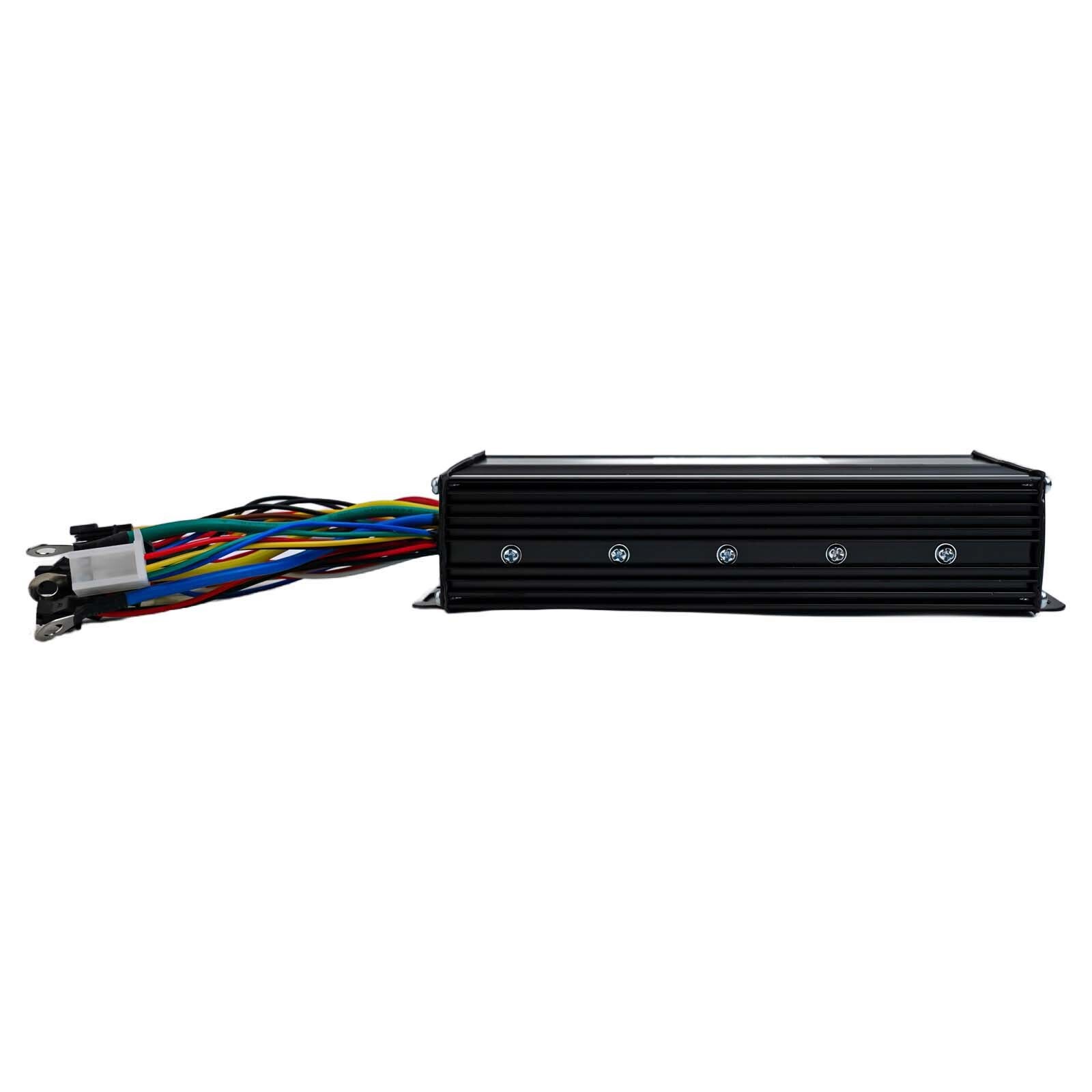

Upgraded ND72300 72V 300A BLDC Sine Wave Programmable Motor Controller E-Bike
The ND72300 is the unit to pick when your build needs serious headroom. It accepts 48V, 60V, and 72V inputs and delivers up to 300A phase current for 1500-2000W motors, so it fits universal setups on e-cargo bikes, e-mini bikes, e-mountain bikes, and e-tricycles. The sine-wave drive keeps acceleration smooth, and the programmable settings let you tailor power delivery rather than accept factory presets. The trade-off is that this kind of capacity is overkill for a modest commuter: you're carrying more controller than a 500W motor will ever ask for. It's also the most expensive of the four, so you'll want to be certain your frame and battery can genuinely use it.
Brushless Motor Controller X056-AXD001 48V 25A Electric Bike Conversion Kit 5S
Built for a 48V electric bike or mountain bike conversion, this controller supports 250W to 1000W motors at a 25A max, so it can suit smaller hub motors as well as more substantial conversion kits. The upside is the conversion-kit approach: it's meant to pair with a 5S meter, so you have a clear target for the display. The limitation is that same 5S dependence: use a non-matching display and you can trigger error codes. Before purchase, confirm the controller model and connector match your bike; that's a small compatibility step.

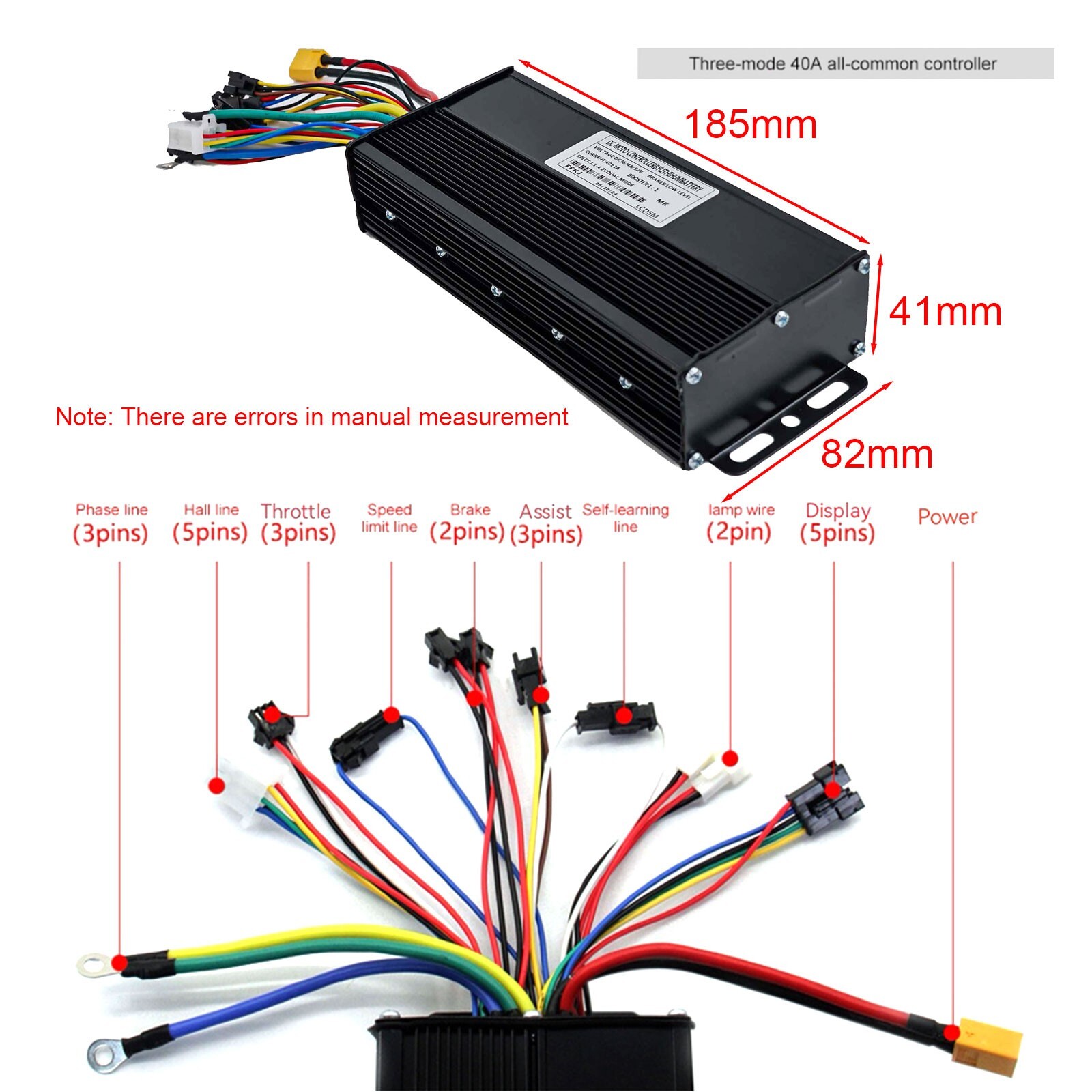

Ebike 36V 48V 52V 2000W 40A Sine Wave 3-mode Controller for Electric Bicycle USA
This controller accepts 36V, 48V, or 52V and pushes 40A to 1500W or 2000W motors, using a 15-MOS layout and a 3-mode control scheme. The aluminum-alloy body is compact. The catch: it uses the No. 2 communication protocol, so your display has to speak the same language. If you already own a No. 2 display, this is a direct route to a strong controller. If you don't, you'll need to add a compatible display. The package content is just the controller, with no display or cabling included.
24V/36V/48V E-bike 26A Controller with Display WP Plug for 500W/750W Motor lot
If you're building a 24V, 36V, or 48V bike with a 500W or 750W motor, this option stands out because it arrives with the display in the box. The package includes a 26A sine-wave controller, an M6 display, and a 1T5 cable, all using WP-plug connectors. That's a real convenience for a commuter setup: you don't have to hunt for a matching display model. The controller also supports forward and reverse motor learning and low-level brakes, which simplifies setup. The limitation is the 26A ceiling, so this bundle is aimed at the 500W and 750W category. For those motors, though, it's a coherent package.
Final Recommendation by Use Case
- High-power cargo, e-mini, or e-mountain bike: Choose the Upgraded ND72300.
- 48V conversion with a known 5S display: Choose the Brushless Motor Controller X056-AXD001.
- Multi-voltage system with an existing No. 2 display: Choose the 15-MOS sine-wave controller.
- Commuter build that needs a display: Choose the controller bundle with display.
