An e-bike motor controller has to match your motor's voltage, current, and protocol, or you end up chasing error codes and unexpected cutoffs. This guide compares four controllers in the ebike motors controllers displays category across price, power, and real-world trade-offs, so you can pick the one that fits the build you have rather than the one that looks good on paper.
Quick take
- Budget replacement: the basic DC speed controller is the least expensive way to run a standard hub motor.
- Compact upgrade: the JN controller suits standard e-bikes with JN-style connectors and light wiring.
- Conversion kit: the X056-AXD001 controller is the one for a conversion with a matching display protocol.
- Performance build: the ND72300 sine wave controller is the programmable choice for high-current builds.
Listed Price Comparison
| Product | List Price | Price Bar |
|---|---|---|
| 36V/48V 350W DC Electric Bicycle E-bike Scooter Brushless Motor Speed Controller | $13.59 | |
| For Electric Bicyc E-bike 36V 48V 6 FET 15A 250W Brushless Motor JN Controller | $30.99 | |
| Brushless Motor Controller X056-AXD001 48V 25A Electric Bike Conversion Kit 5S | $72.29 | |
| Upgraded ND72300 72V 300A BLDC Sine Wave Programmable Motor Controller E-Bike | $177.99 |
Decision Matrix
- Lowest-cost basic replacement: pick the basic DC speed controller.
- Compact standard e-bike upgrade: pick the JN controller.
- Conversion with a protocol-matched display: pick the X056-AXD001 conversion kit.
- High-performance sine wave tuning: pick the ND72300 controller.
Product Notes

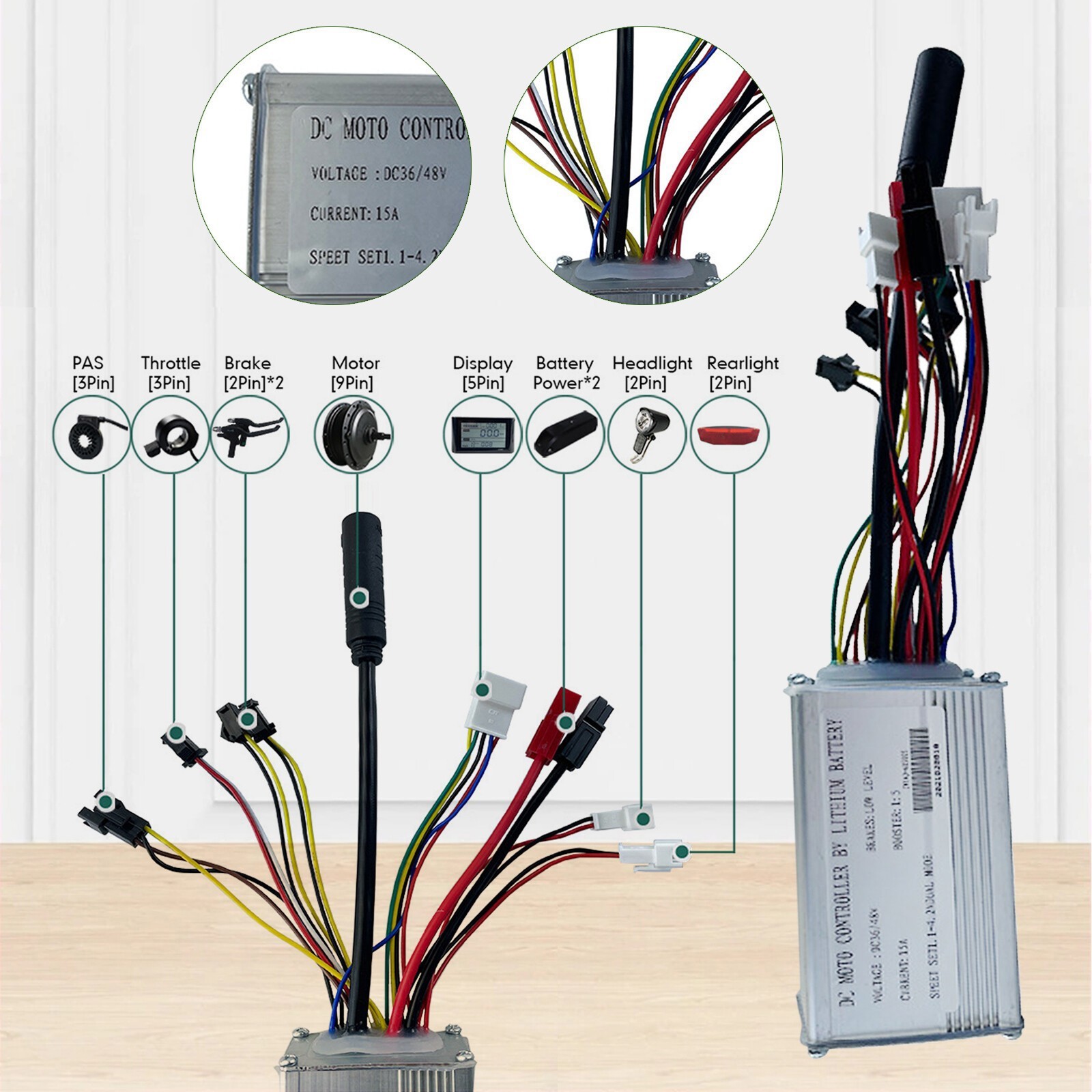

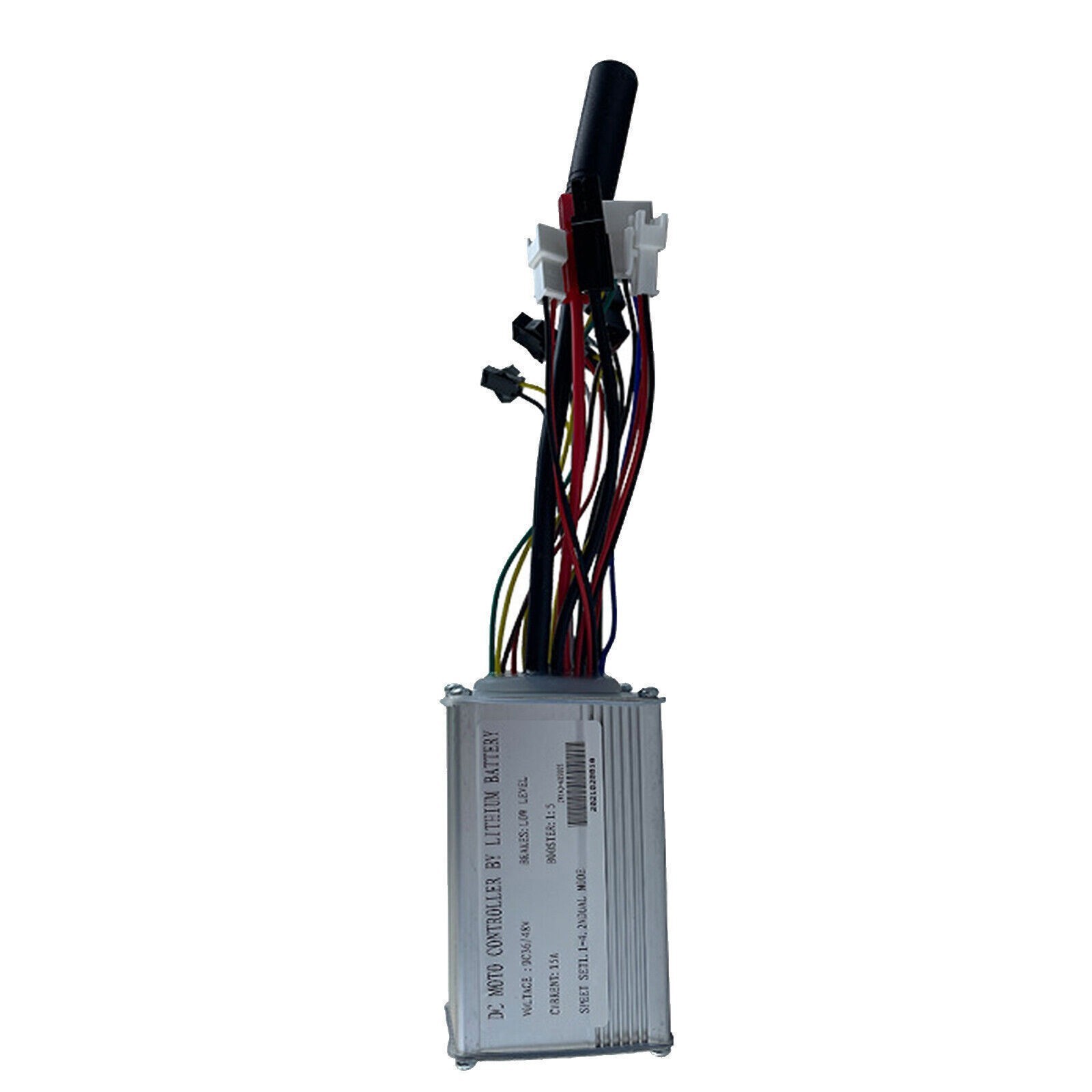

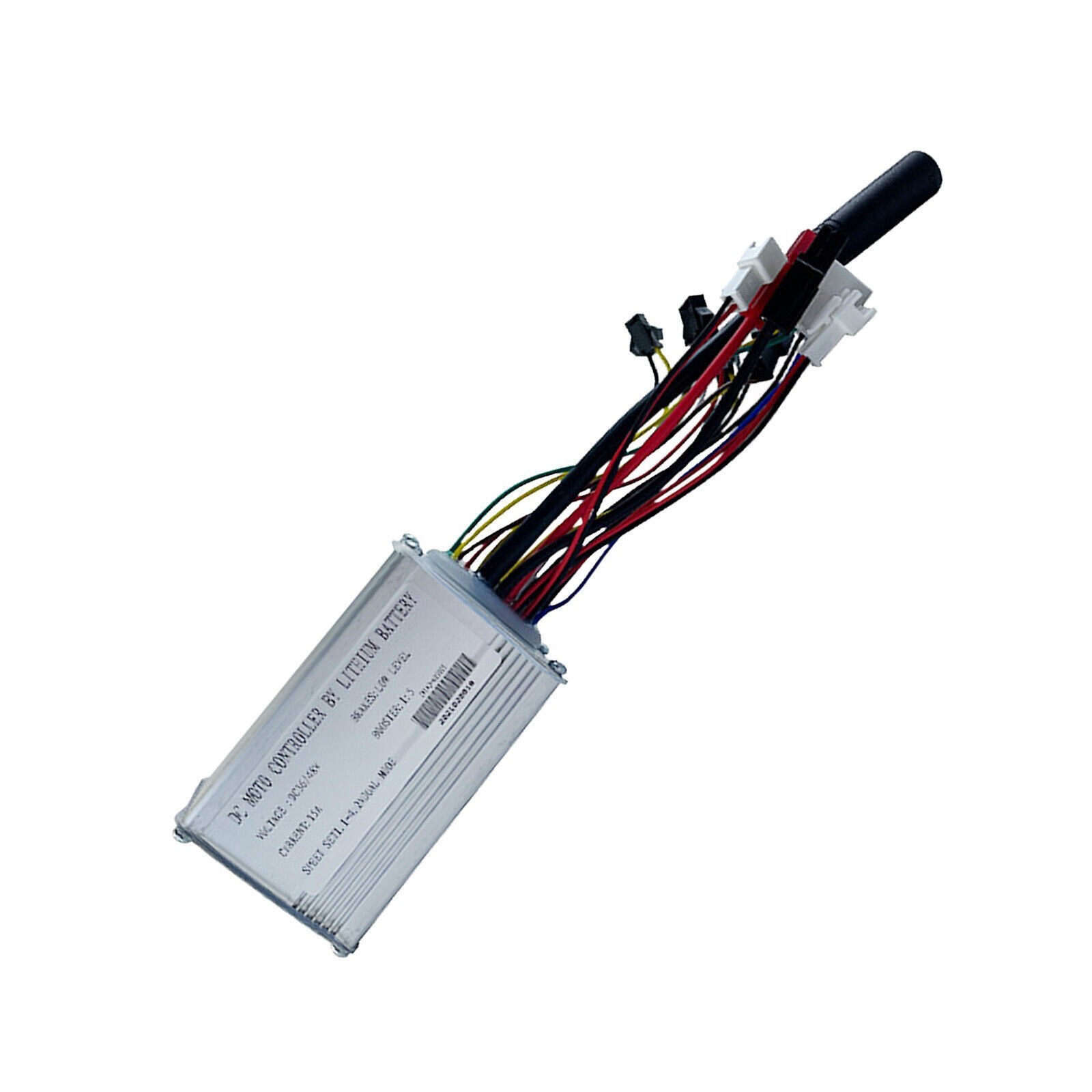

For Electric Bicyc E-bike 36V 48V 6 FET 15A 250W Brushless Motor JN Controller

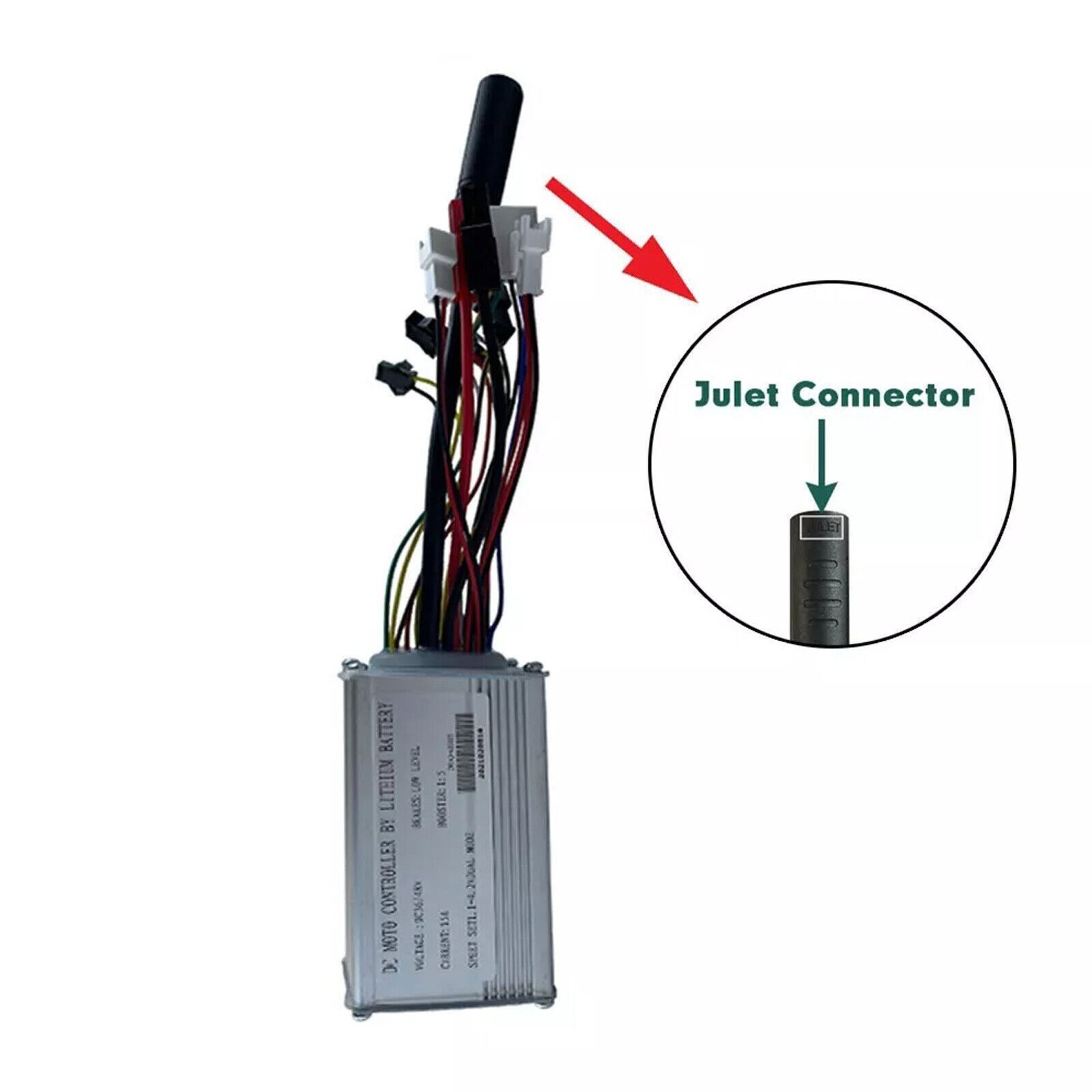

The JN controller is a compact 250W option for e-bikes that already use JN-style connectors. It runs on 36V or 48V, supplies 15A through six MOSFETs, and includes a 1.5 booster ratio plus wires for front and rear lights. The JULET waterproof female plugs and low-level brake input make wiring more straightforward if your harness matches. The short cable length of 10-13cm means the controller has to sit close to the components it connects to, and the 15A current limit keeps it in the standard-power range. At $30.99, it is a middle ground between the budget controller and the 48V 25A conversion unit, so choose it when the connector match is worth the extra cost.
Brushless Motor Controller X056-AXD001 48V 25A Electric Bike Conversion Kit 5S
This conversion controller is designed to work with a 5S protocol display and is listed for motors from 250W through 1000W. It runs on a 48V lithium-ion system, so it fits a 48V conversion with room to grow. The important limitation is protocol matching: a mismatch can cause error codes on the display, and you should send photos of your original controller label and connector before ordering to confirm the protocol. That extra step is worth taking at $72.29, because a wrong protocol match turns the conversion into a troubleshooting session. If your bike already has a 5S display, this is the one in this group aimed at that setup.
36V/48V 350W DC Electric Bicycle E-bike Scooter Brushless Motor Speed Controller
The budget pick of the group costs $13.59 and handles 36V or 48V brushless motors up to 350W. It works with hall sensor and hall-sensorless motors, and its 17A current limit gives a little more headroom than the JN controller. The trade-off is manual wiring: you connect the motor, battery, throttle, hall, brake, and self-learning lines yourself, and you have to separate the self-learning lines once the wheel spins in the correct direction. That makes it a straightforward choice for a simple commuter or scooter rather than a build that needs display integration.
Upgraded ND72300 72V 300A BLDC Sine Wave Programmable Motor Controller E-Bike
The ND72300 is the high-current controller here, with a 300A phase current and a 70A-110A line current range. It operates on 48V, 60V, or 72V and is made for motors rated 1500W to 2000W, so it targets e-mountain bikes, e-cargo bikes, e-trikes, and higher-power scooters. Sine wave control and programmable settings smooth out acceleration. At $177.99 it is the most expensive option, and it is overkill for a 250W or 350W motor. Buy it when your build needs the phase current and tuning range, not for a basic commuter.
Final Recommendation by Use Case
- Lowest-cost replacement for a simple hub motor: the basic DC speed controller is the pick.
- Standard e-bike with JN connectors: the JN controller is the pick.
- Conversion using a protocol-matched display: the X056-AXD001 conversion kit is the pick.
- High-power sine wave build: the ND72300 controller is the pick.
