Brushed vs Brushless vs 72V: Choose the Right Ebike Motor Controller ($59.99-$177.99)

Before you buy an ebike motor controller, the first question isn't price-it's whether the controller matches the motor sitting in your frame. A brushed motor with two wires needs a completely different controller than a brushless BLDC motor with three phase wires and five sensor wires. Add display protocol, voltage, and current limits, and the wrong pick can leave you with error codes or a bike that won't move at all. These four controllers show how wide that spread is, from a USD 59.99 brushed throttle setup to a USD 177.99 programmable 72V sine-wave unit.

Quick take

The four controllers split into four very different jobs. The lowest-priced option-the 1000W brushed controller with LED throttle-is the only one here that will run a two-wire brushed motor. The 25A brushless controller is for conversion projects, but it has a protocol matching requirement. The 26A controller with display is the bundle option for mid-power builds and includes the display. The 72V programmable ND72300 is the heavy-duty choice for 1.5-2KW motors and high-power builds. The USD price spread from lowest to highest is $118, so the real decision is motor type, voltage, and power level rather than price alone.

Price comparison

Decision matrix

Controller-by-controller notes

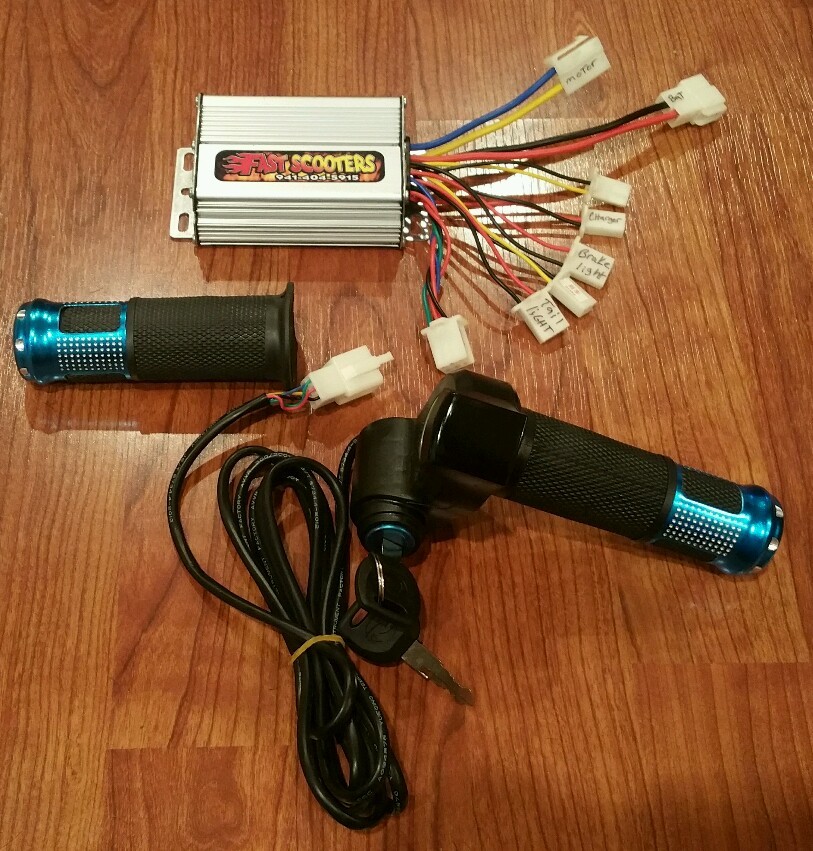

48V - 1000 Watt Controller and LED Digital throttle (Brushed Motor) Ebike e bike

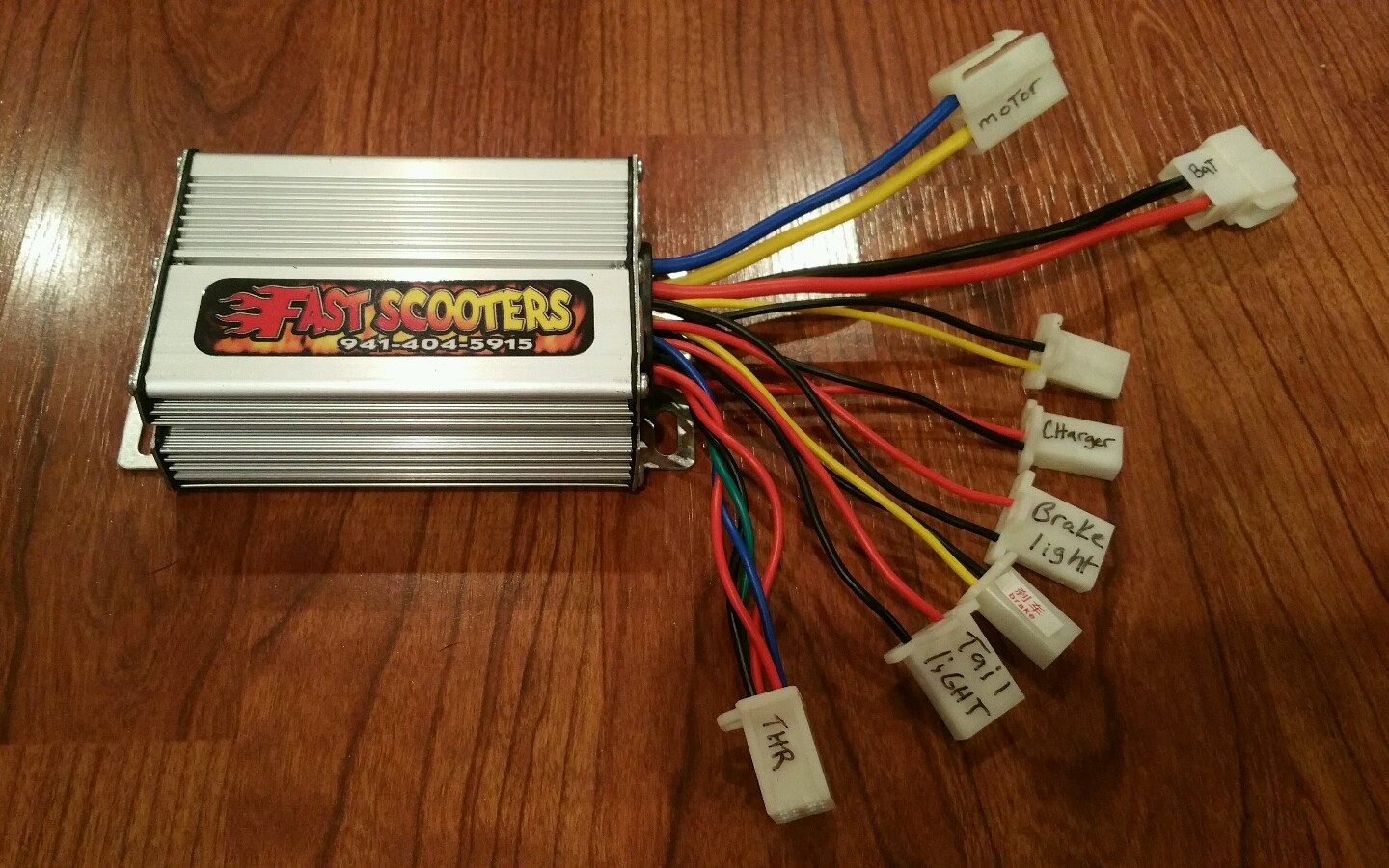

If your motor is a true brushed unit with only two wires, this controller plus throttle package is the straightforward way to get that motor moving. It's rated at 48V and 30A, handles any wattage up to 1000W, and comes with an LED digital readout throttle that plugs directly into the controller. The 2-pin 6.3mm battery connector keeps the hookup simple for a pack that uses that connector. The limitation is just as clear: it only works with brushed motors. If your motor has three phase wires plus five smaller sensor wires, it's a brushless motor, and this controller will not run it. At USD 59.99, it is the least expensive option in this group and the only one built for the brushed side of the market.

Brushless Motor Controller X056-AXD001 48V 25A Electric Bike Conversion Kit 5S

For a brushless conversion on a mountain bike or scooter, this controller covers motors in the 250W to 1000W range and is compatible with MTB builds. The silver unit runs on lithium-ion packs and fits a broad universal bike platform, making it a practical choice for a conversion project. The main thing to check is the 5S protocol: the controller is designed for a 5S-style display, and a protocol mismatch can trigger error codes on the screen. The ordering process also asks you to send photos of your original controller label and connector before the order is confirmed, so the correct model can be matched. That makes it less of an impulse buy, but it's a sensible step for a connector-sensitive conversion.

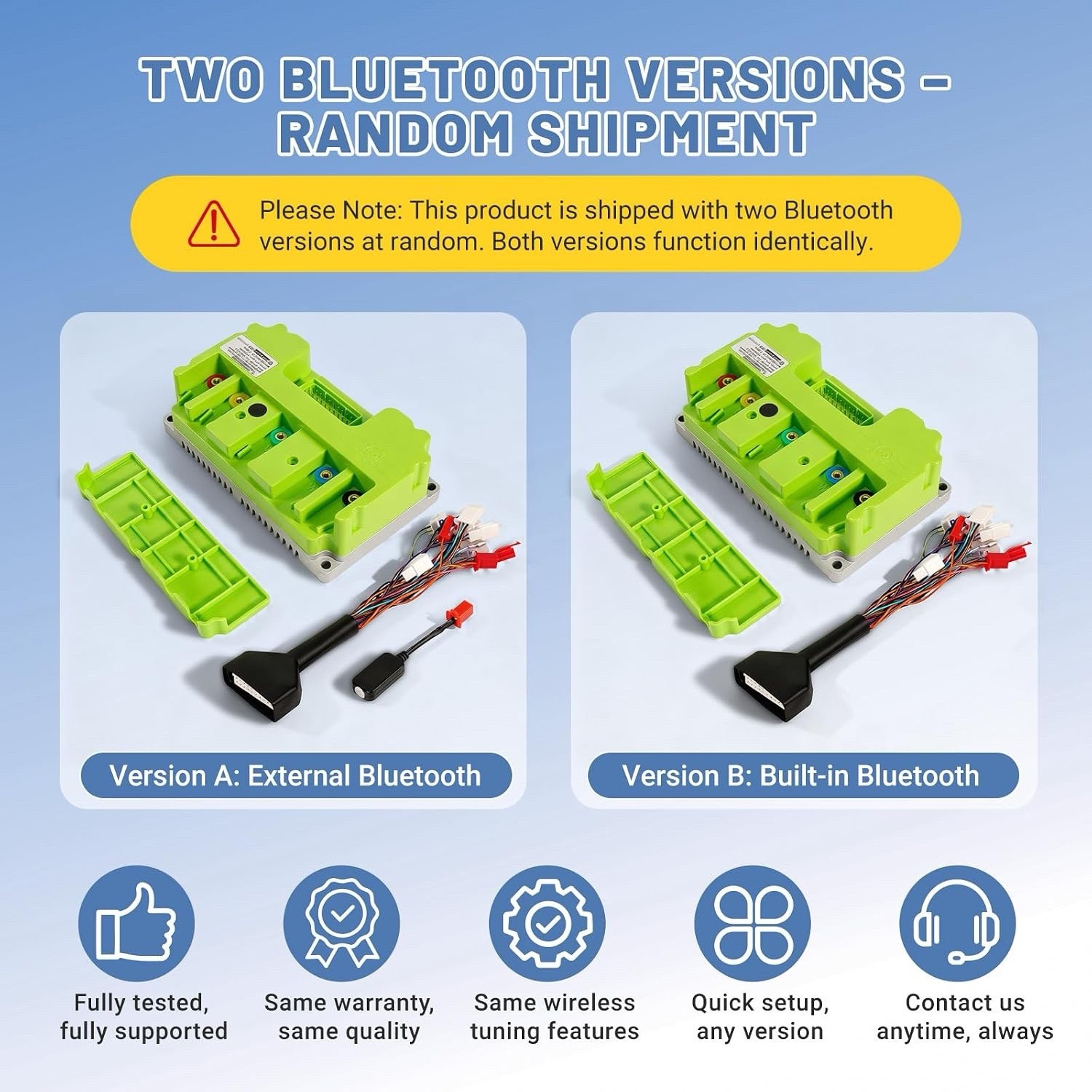

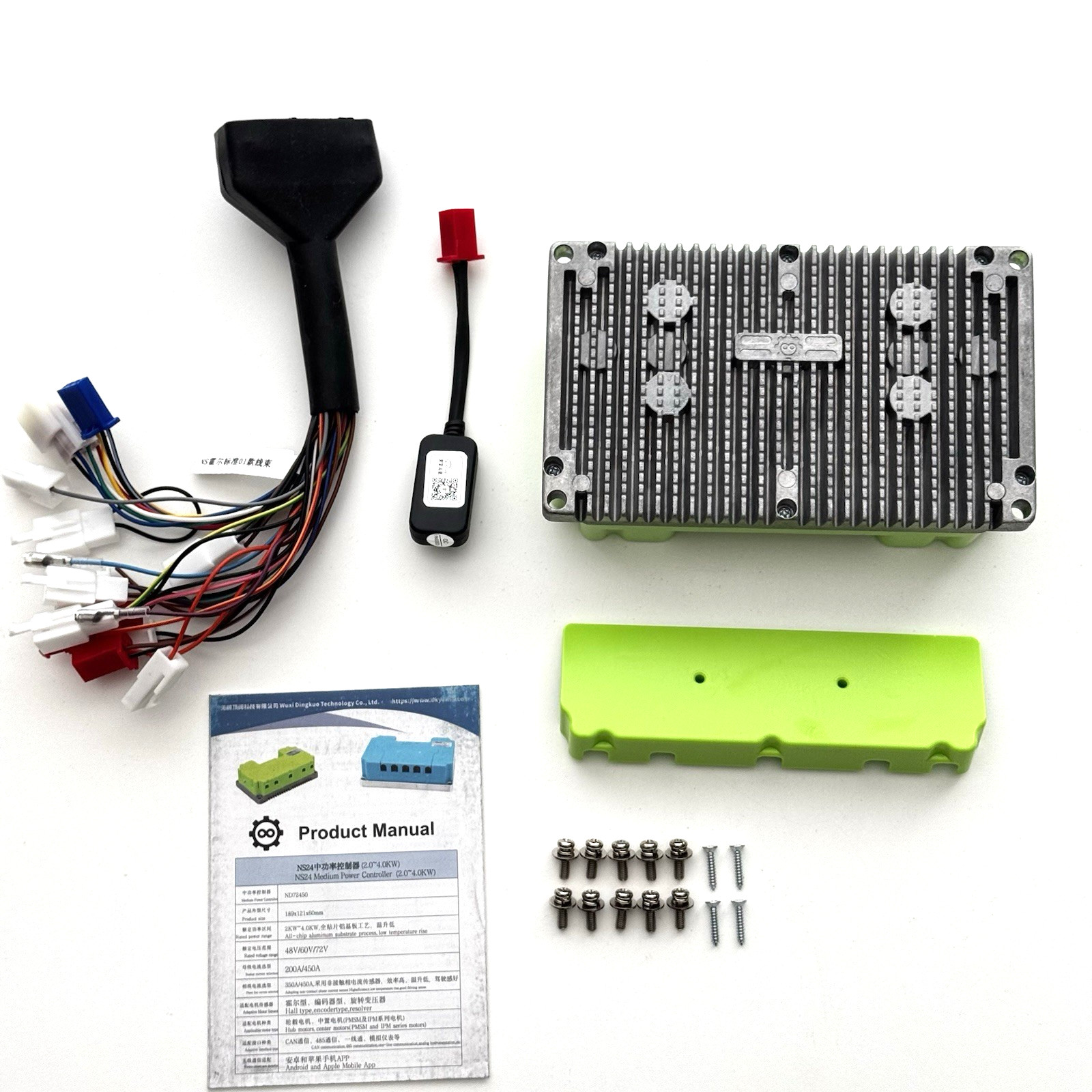

Upgraded ND72300 72V 300A BLDC Sine Wave Programmable Motor Controller E-Bike

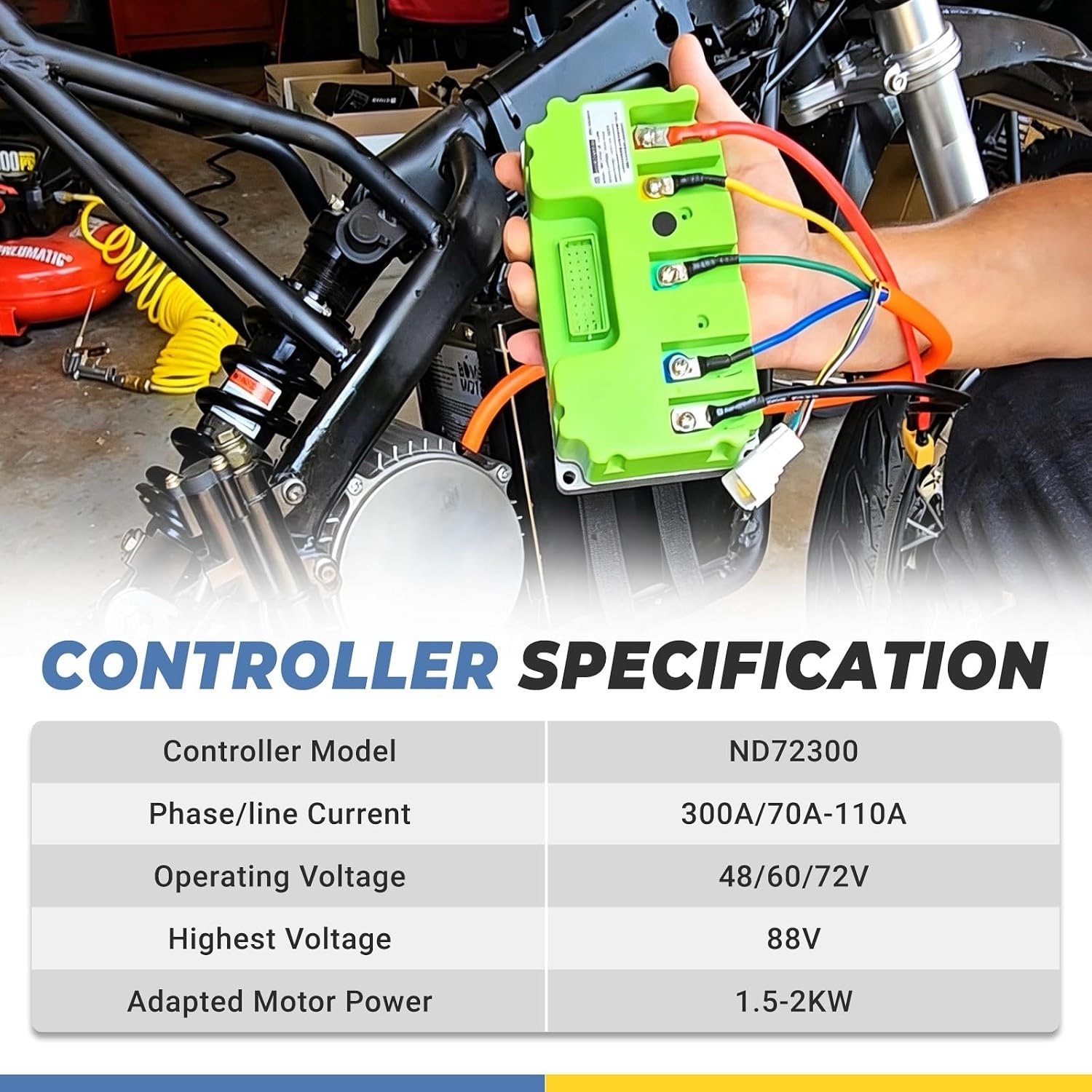

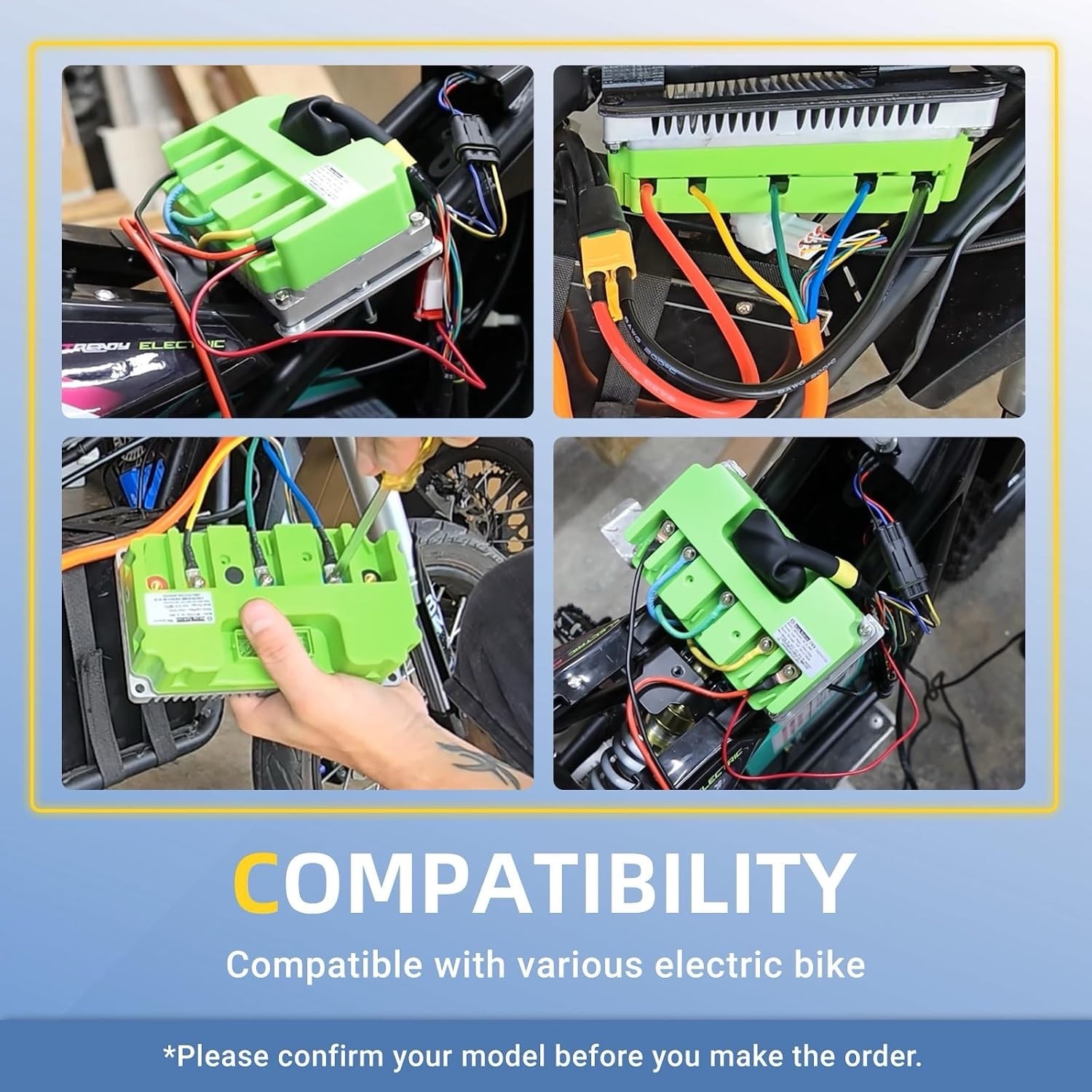

When you're planning a high-power build, this is the controller to program around. It's a BLDC sine-wave unit that runs on 48V, 60V, or 72V, supports peak voltage up to 88V, and is adapted for 1500W to 2000W motors. The sine-wave output is useful for smooth acceleration on heavier platforms like e-cargo bikes, e-tricycles, and e-mountain bikes, and it's also compatible with e-mini bikes and electric motorcycles or scooters. The trade-off is the 300A phase current and the USD 177.99 price: unless you're actually running a 1.5-2KW motor with a battery and wiring that can feed it, this is more controller than a 500W or 750W build needs. It's the top of the price range here, and it should be matched to the rest of the high-power system.

24V/36V/48V E-bike 26A Controller with Display WP Plug for 500W/750W Motor lot

If you want a complete control package for a 500W or 750W motor, this bundle gives you more than just the controller. It's a 26A sine-wave unit that accepts 24V, 36V, or 48V batteries and works with motors that have Hall sensors and motors without them. The package includes an M6 display and a 1T5 cable, plus a 130X thumb throttle and a KT-BZ-4(8) pedal assist sensor, so you have the main controls in one lot. The trade-off is the WP plug standard: the controller, display, and throttle use WP connectors, so you need to confirm those match your bike's existing wiring or be ready to adapt them. At USD 106.63, it sits between the brushed/brushless controllers and the 72V programmable unit, and it gives you a display without buying a separate one.

Final recommendation by use case

• Two-wire brushed motor up to 1000W: go with the 48V - 1000 Watt Controller and LED Digital throttle.
• Brushless mountain bike or scooter conversion: the X056-AXD001 25A brushless controller works once the 5S protocol is confirmed.
• Mid-power build where you also want the display and throttle: the 26A controller with display gives you both in the box.
• 1500W to 2000W high-power bike, cargo bike, or e-tricycle: the ND72300 72V programmable controller is the unit to build around.
